Visualization of words used in House of the Dragon Season 2 and their “rarity”

import os
import re
import json

import numpy as np
import pandas as pd
from scipy import signal, interpolate

import matplotlib.pyplot as plt
from matplotlib import rcParams
import matplotlib.dates as mdates
import seaborn as sns

# plot configs
rcParams['font.family'] = 'Overpass Nerd Font'
rcParams['font.size'] = 18
rcParams['axes.titlesize'] = 20
rcParams['axes.labelsize'] = 18
rcParams['axes.linewidth'] = 1.5
rcParams['lines.linewidth'] = 1.5
rcParams['lines.markersize'] = 20
rcParams['patch.linewidth'] = 1.5
rcParams['xtick.labelsize'] = 18
rcParams['ytick.labelsize'] = 18
rcParams['xtick.major.width'] = 2
rcParams['xtick.minor.width'] = 2
rcParams['ytick.major.width'] = 2
rcParams['ytick.minor.width'] = 2
rcParams['savefig.dpi'] = 300
rcParams['savefig.transparent'] = False
rcParams['savefig.facecolor'] = 'white'
rcParams['savefig.format'] = 'svg'
rcParams['savefig.pad_inches'] = 0.5
rcParams['savefig.bbox'] = 'tight'

word_first_appearance = (
    word_df.sort_values(['episode'])
    .groupby('word').head(1)
    .reset_index(drop=True)
)

word_first_appearance

def process_trends(
    trend_file,
    base_date=None,
):

    # load raw data
    with open(trend_file, 'r') as f:
        raw_data = json.load(f)

    assert all([len(x['result']) == 1 for x in raw_data])

    # get keyword trends data
    trend_df = []

    for rd in raw_data:
        assert len(rd['result']) == 1
        trends = [
            x for x in rd['result'][0]['items']
            if x['type'] == 'dataforseo_trends_graph'
        ]
        assert len(trends) == 1
        trends = trends[0]
        trends_words = trends['keywords']

        trends_data = pd.DataFrame(trends['data'])
        trends_data['word'] = [trends_words] * len(trends_data)
        trends_data = (
            trends_data.explode(['word', 'values'])
            .rename(columns={'values': 'value'})
            .astype({'value':'float'})
            .reset_index(drop=True)
        )
        trend_df.append(trends_data)

    trend_df = pd.concat(trend_df, ignore_index=True)

    # process dates
    trend_df['date_from'] = pd.to_datetime(trend_df['date_from'])
    trend_df['date_to'] = pd.to_datetime(trend_df['date_to'])
    trend_df['num_days'] = (trend_df['date_to'] - trend_df['date_from']).dt.days
    trend_df['date_center'] = (
        trend_df['date_from'] +
        pd.to_timedelta(np.round(trend_df['num_days'] / 2), unit='d')
    )

    # stats for norm
    min_max_df = (
        trend_df.groupby('word')
        ['value'].agg(['min', 'max'])
        .add_suffix('_value')
        .astype('float')
        .reset_index()
    )

    # other stats with optionally from base
    stat_df_base_opt = (
        (
            trend_df.query('date_to < @base_date')
            if base_date is not None
            else trend_df
        )
        .groupby('word')
        ['value'].agg(
            mean = 'mean',
            std = 'std',
            median = 'median',
            iqr = lambda x: np.subtract(*np.percentile(x, [75, 25]))
        )
        .add_suffix('_value')
        .astype('float')
        .reset_index()
    )

    # merge stats
    trend_df = (
        trend_df
        .merge(
            min_max_df,
            how='left'
        )
        .merge(
            stat_df_base_opt,
            how='left'
        )
        .query('max_value > 0')
        .reset_index(drop=True)
    )

    # min-max normalize
    trend_df['mm_value'] = (
        (trend_df['value'] - trend_df['min_value']) /
        (trend_df['max_value'] - trend_df['min_value'])
    )

    # zscore scaling
    trend_df['z_value'] = (
        (trend_df['value'] - trend_df['mean_value']) /
        (trend_df['std_value'])
    )

    # robust scaling
    trend_df['r_value'] = (
        (trend_df['value'] - trend_df['median_value']) /
        (trend_df['iqr_value'])
    )

    trend_df = trend_df.drop(columns=[
        'min_value', 'max_value',
        'mean_value', 'std_value',
        'median_value', 'iqr_value'
    ])

    return trend_df

# select date range and convert date to summer / week days
trend_df = (
    trend_df
    .assign(date = pd.to_datetime(trend_df['date_from']))
    .query('date <= @max_date')
    .reset_index(drop=True)
)

# the selected date range should allow this
# if not, can remove
assert all(trend_df['date_from'] == trend_df['date_to'])

# filter only needed columns
# and add summer / week days if needed
# use `mm_value` aka min-max norm values onwards
trend_df = (
    trend_df
    .filter(['word', 'date', 'mm_value'])
    .assign(
        summer_day = (trend_df['date'] - summer_startdate).dt.days + 1,
        week_day = trend_df['date'].dt.strftime('%w').astype('int') + 1
    )
    .rename(columns={'mm_value': 'value'})
    .sort_values(['word', 'date'])
    .fillna({'value': 0})
    .reset_index(drop=True)
)

day_vec = np.arange(trend_df['summer_day'].min(), trend_df['summer_day'].max()+1)

# this is for peak detection
assert all(1 == (
    trend_df
    .groupby('word')
    ['date'].diff()
    .dropna()
    .dt.days
))

trend_df

def binarize_locations(locs, length):
    x = np.full(length, False)
    x[locs] = True
    return x

# find peaks
trend_df['is_peak'] = (
    trend_df.groupby('word')
    ['value'].apply(
        lambda x: binarize_locations(
            locs = signal.find_peaks(np.array(x), **peak_kws)[0],
            length = len(x)
        )
    )
    .explode()
    .astype('bool')
    .values
)

trend_df

peak_df = (
    trend_df.query('is_peak')
    .merge(
        word_first_appearance,
        how='left'
    )
    .rename(columns={
        'air_date': 'first_air_date'
    })
)
assert peak_df.isna().sum().sum() == 0

peak_df['first_air_summer_day'] = (peak_df['first_air_date'] - summer_startdate).dt.days + 1
peak_df['peak_delay'] = (peak_df['date'] - peak_df['first_air_date']).dt.days

peak_df['appear_after_before_ratio'] = (
    (day_vec.max() - peak_df['first_air_summer_day']) /
    (peak_df['first_air_summer_day'] - day_vec.min())
)

peak_df['first_episode'] = peak_df.apply(
    lambda x: x['episode'] if x['peak_delay'] >= 0 else -1,
    axis=1
)

# based on first episode appearances
word_order = list(
    peak_df
    .query('peak_delay >= 0')
    .sort_values(['episode', 'peak_delay'])
    ['word'].unique()
)

word_order.extend(list(set(peak_df['word']) - set(word_order)))

peak_count_df = (
    (
        peak_df.set_index([
            'word', 'appear_after_before_ratio',
        ])['peak_delay'] >= 0
    )
    .reset_index()
    .value_counts()
    .reset_index()
    .replace({'peak_delay': {True: 'after_air', False: 'before_air'}})
    .pivot(
        index=['word', 'appear_after_before_ratio'],
        columns='peak_delay',
        values='count'
    )
    .fillna(0).astype(int)
    .reset_index()
)
peak_count_df.columns.name = None

peak_count_df['total'] = peak_count_df['after_air'] + peak_count_df['before_air']
peak_count_df['trend_after_before_ratio'] = peak_count_df['after_air'] / peak_count_df['before_air']

# peak_count_df['trend_after_air_ratio'] = peak_count_df['after_air'] / peak_count_df['total']

peak_count_df

selected_word_order = [
    x for x in word_order if x in selected_words
][::-1]

selected_trends = (
    trend_df
    .query('word in @selected_words')
    .reset_index(drop=True)
)

selected_trends['word_idx'] = selected_trends['word'].map({
    x: i for i, x in enumerate(selected_word_order)
})

selected_trends['value'] = selected_trends['value']*0.8 + selected_trends['word_idx']

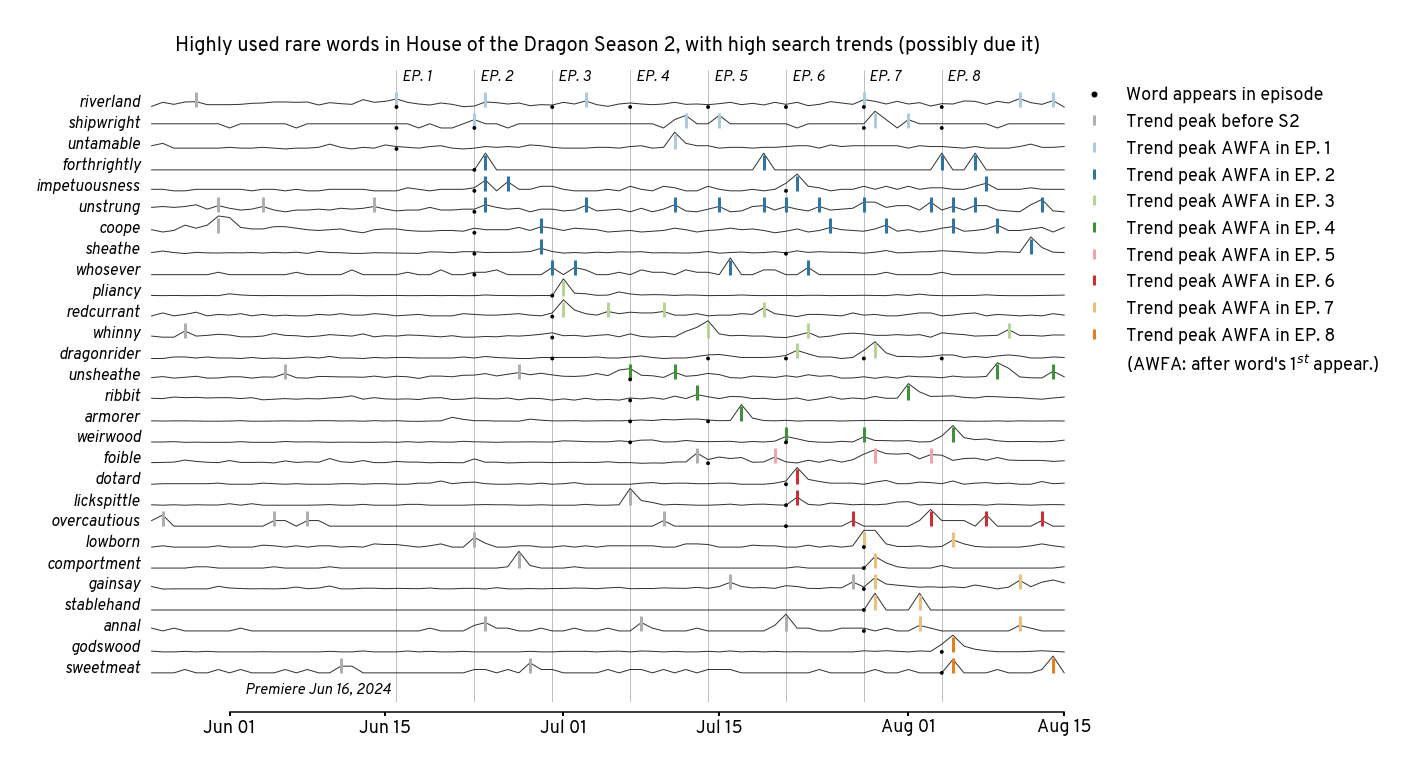

plt.figure(figsize=(19,10))

first_ep_cmap = dict(zip(
    [-1] + list(range(1,num_episodes+1,1)),
    ['#afafaf'] + sns.color_palette('Paired', num_episodes, desat=0.8)
))

# plot peak ~ markers
sns.stripplot(
    peak_df.query('word in @selected_words'),
    x='date',
    y='word',
    hue='first_episode',
    order=selected_word_order,
    orient='y',
    hue_order=first_ep_cmap.keys(),
    palette=first_ep_cmap,
    marker=2,
    s=15,
    linewidth=3,
    jitter=0,
    zorder=3,
)

# overlay (shifted) trend series
sns.lineplot(
    selected_trends,
    x='date',
    y='value',
    units='word',
    estimator=None,
    lw=1,
    c='.2',
    zorder=2,
)

# when word appears
sns.scatterplot(
    word_df.query('word in @selected_words'),
    x='air_date',
    y='word',
    c='k',
    zorder=3,
    marker='.',
    edgecolor='none',
    s=60,
)

# when episode airs
[
    plt.axvline(x=x, color='.5', ls='-', lw=0.5, zorder=1)
    for x in word_df['air_date'].drop_duplicates()
]

# put episode names
[
    plt.text(
        x=r['air_date'] + pd.Timedelta('12h'),
        y=len(selected_words) + 0.25,
        s='EP. %d'%(r['episode']),
        fontstyle='italic',
        fontsize=15
    )
    for _, r in word_df[['episode','air_date',]].drop_duplicates().iterrows()
]

plt.text(
    x=show_start_date - pd.Timedelta('12h'),
    y=-1,
    s=show_start_date.strftime('Premiere %b %d, %Y'),
    fontstyle='italic',
    fontsize=15,
    ha='right'
)

# put words right next to trends (aka y-axis removed)
[
    plt.text(
        x=trend_df['date'].min() - pd.Timedelta('1D'),
        y=w,
        s=w,
        fontstyle='italic',
        ha='right',
        fontsize=16
    )
    for w in selected_words
]

# legends
plt.legend(
    handles=[
        plt.Line2D(
            [0],[0],
            label='Word appears in episode',
            color='k',
            marker='.',
            ls='none',
            markersize=10
        )
    ] + [
        plt.Line2D(
            [0],[0],
            label=(
                'Trend peak AWFA in EP. %d' %(k) if k > 0
                else 'Trend peak before S2'
            ),
            color=v,
            marker='|',
            ls='none',
            markersize=10,
            markeredgewidth=3
        )
        for k, v in first_ep_cmap.items()
    ] + [
        plt.Line2D(
            [0], [0],
            label = "(AWFA: after word's 1$^{st}$ appear.)",
            color = 'none',
            ls='none',
        )
    ],
    bbox_to_anchor = (0.95,1),
    frameon=False,
    fontsize=18,
)


plt.gca().invert_yaxis()
plt.yticks([])
plt.xlabel(None)
plt.ylabel(None)
sns.despine(trim=True, offset=10, left=True)

plt.title(
    'Highly used rare words in House of the Dragon Season 2, ' \
    'with high search trends (possibly due it)',
    y=1.02
)

plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%b %d'))

plt.tight_layout()

plt.savefig('figures/hotds2-rare-word-trends.png')
plt.savefig('figures/hotds2-rare-word-trends.svg')
plt.show()

def interpolate_trends(
    trend_df,
    freq='7d',
    xcol='date_from',
    interp1d_kws=dict()
):
    date_vec = pd.date_range(
        trend_df['date_from'].min(),
        trend_df['date_to'].max(),
        freq=freq
    )

    trend_df = (
        trend_df
        .groupby(['word'])
        .apply(
            lambda x: pd.DataFrame({
                k: interpolate.interp1d(
                    x=(x[xcol] - date_vec.min()).dt.days.to_numpy(),
                    y=x[k],
                    **interp1d_kws
                )(
                    (date_vec - date_vec.min()).days
                )
                for k in trend_df.filter(regex='.*value.*').columns
            }).assign(date = date_vec),
            include_groups=False
        )
        .reset_index()
    )

    trend_df = trend_df.drop(
        columns=trend_df.filter(regex='level_\d+').columns
    )

    return trend_df

word_meta_df = (
    word_df
    .sort_values('log10_ratio')
    .groupby('word').tail(1)
    .filter(regex='word|freq|ratio|is_.*_selected')
)

assert (
    word_meta_df
    .filter(regex='is_.*')
    .any(axis=1)
    .all()
)

word_meta_df = (
    word_meta_df
    .melt(
        id_vars=['word', 'script_freq', 'base_freq', 'log10_ratio'],
        var_name='category'
    )
    .query('value')
    .drop(columns='value')
    .groupby(['word', 'category'])
    .agg('median')
    .reset_index()
)

word_meta_df['category'] = (
    word_meta_df['category']
    .str.replace('is_', '')
    .str.replace('_selected', '')
    .map({
        'other': 'other',
        'hotd': 'show-specific',
        'high_rare': 'highly used & rare',
    })
)

for k in ['script_freq', 'base_freq', 'log10_ratio']:
    word_meta_df[k + '_quartile'] = pd.qcut(
        word_meta_df[k],
        4,
        labels=['Q' + str(x+1) for x in range(4)],
        precision=10
    )

cat_cmap = {
    'show-specific': '#b2182b',
    'highly used & rare': '#2166ac',
    'other': '#969696',
}

trend_df = trend_df.merge(
    trend_df
    .groupby(['category', 'word'])
    ['z_value'].max()
    .reset_index()
    .set_index('word')
    .groupby('category')
    .rank(method='dense')
    .rename(columns={'z_value': 'rank_z'})
    .reset_index()
)

for k in ['script_freq', 'base_freq', 'log10_ratio']:
    trend_df['rank_' + k] = (
        trend_df
        .groupby('category')
        [k].rank(method='dense', ascending='base' in k)
    )

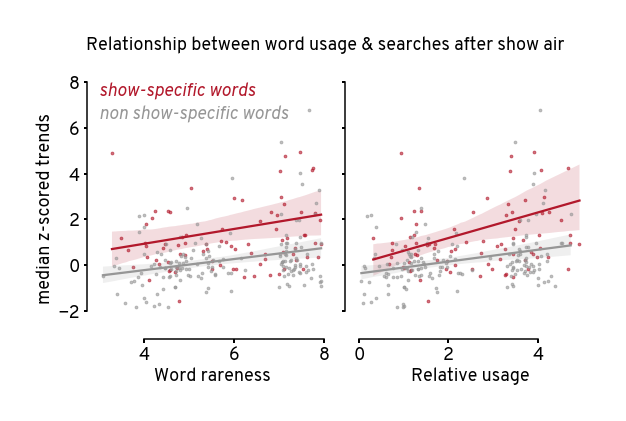

usage_order = ['Word rareness','Relative usage']
coarse_cat_cmap = {
    'show-specific': '#b2182b',
    'non show-specific': '#969696',
}

agg_show_df = (
    trend_df.query('date >= @show_start_date')
    .groupby(['word', 'category', 'base_freq', 'log10_ratio'])
    ['z_value'].agg('median')
    .reset_index()
    .rename(columns={'log10_ratio': 'Relative usage'})
)

agg_show_df['Word rareness'] = -np.log10(agg_show_df.pop('base_freq'))

agg_show_df['category'] = agg_show_df['category'].apply(
    lambda x: 'non show-specific' if 'show' not in x else x
)

agg_show_df = agg_show_df.melt(
    id_vars=['word', 'category', 'z_value'],
    var_name='word_metric',
)

agg_show_df

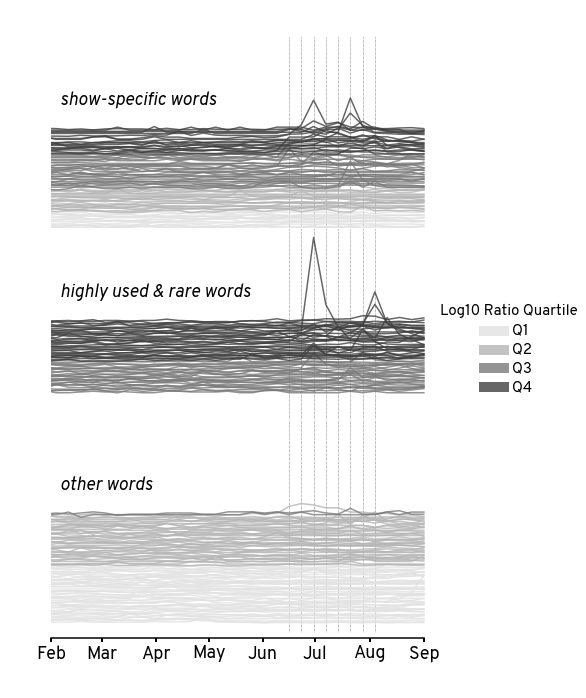

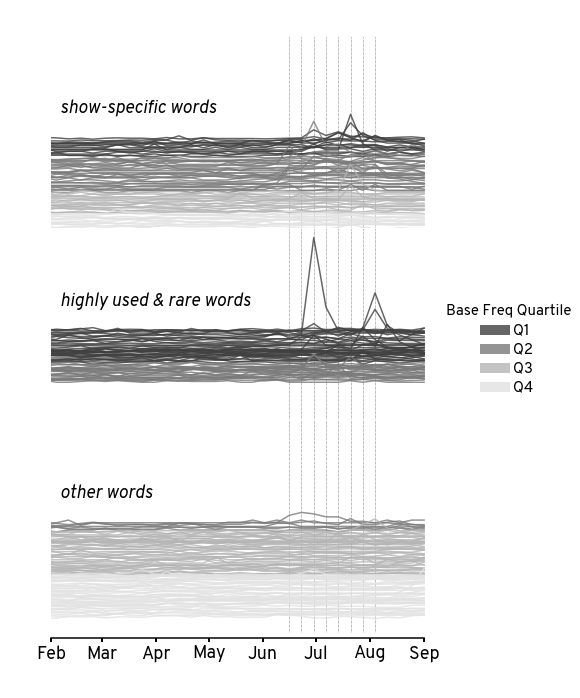

for hue_col, cmap in zip(
    ['base_freq_quartile','log10_ratio_quartile'],
    ['Greys_r', 'Greys']
):
    rank_vec = trend_df['rank_' + hue_col.replace('_quartile', '')]

    trend_df['shifted_z_value'] = (
        trend_df['z_value'] * 0.8
        - rank_vec
    )

    g = sns.relplot(
        trend_df,
        x='date',
        # y='z_value',
        y='shifted_z_value',
        hue=hue_col,
        palette=cmap,
        units='word',estimator=None,
        row_order=cat_cmap.keys(),
        row='category',
        kind='line',
        n_boot=10,
        zorder=2,
        height=3,
        aspect=2,
        alpha=0.8,
    )

    [
        g.refline(x=x, color='k', ls=':', lw=0.5, zorder=1)
        for x in word_df['air_date'].drop_duplicates()
    ]
    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%b'))

    g.set_titles('')
    g.set_xlabels('')
    g.set_ylabels('')

    plt.xlim([viz_start_date,viz_stop_date])

    for i, (k, ax) in enumerate(g.axes_dict.items()):
        hide_xaxis = i < (len(g.axes) - 1)
        sns.despine(
            trim=True, offset=5,
            left=True,
            bottom = hide_xaxis,
            ax=ax
        )
        ax.label_outer(True)
        ax.set_yticks([])
        ax.text(
            x=viz_start_date + pd.Timedelta('5d'),
            y=20,
            s=k + ' words',
            fontstyle='italic',
            fontsize=18
        )

    g.legend.get_title().set_fontsize(15)
    g.legend.get_title().set_text(hue_col.replace('_', ' ').title())
    [l.set_linewidth(10) for l in g.legend.get_lines()]
    [t.set_fontsize(15) for t in g.legend.texts]

    g.tight_layout(h_pad=-2)

    plt.savefig(f'figures/hotds2-stacked-word-trends-colored-by-{hue_col}.png')
    plt.savefig(f'figures/hotds2-stacked-word-trends-colored-by-{hue_col}.svg')

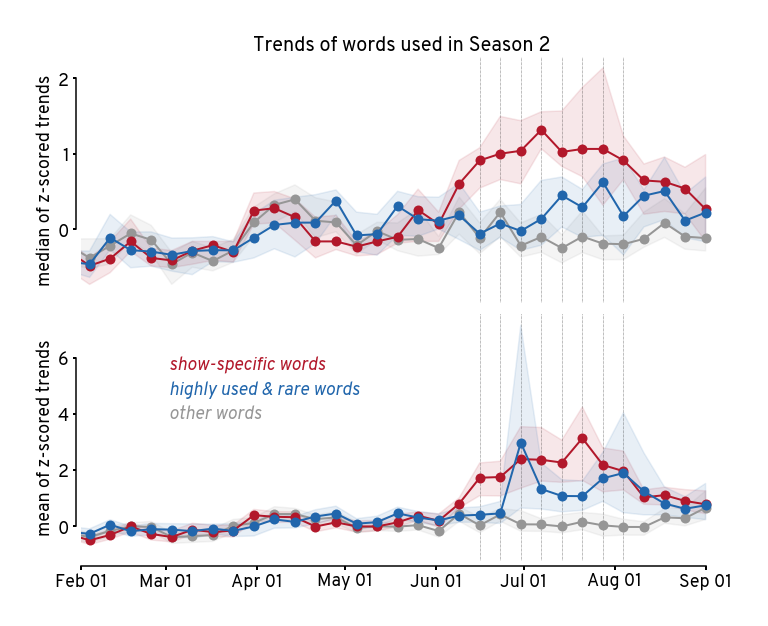

plt.figure(figsize=(10,8))

for i, est_fn in enumerate([
    np.nanmedian, np.nanmean
]):

    plt.subplot(2,1,i+1)
    sns.lineplot(
        trend_df,
        x='date',
        y='z_value',
        hue='category',
        palette=cat_cmap,
        errorbar=('ci', 95),
        estimator=est_fn,
        marker='o',
        markersize=10,
        markeredgecolor='none',
        n_boot=50,
        zorder=2,
        lw=2,
        legend=False,
        err_kws={'alpha':0.1}
    )

    [
        plt.axvline(x=x, color='k', ls=':', lw=0.5, zorder=1)
        for x in word_df['air_date'].drop_duplicates()
    ]

    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%b %d'))
    plt.xlim([viz_start_date,viz_stop_date])

    plt.xlabel(None)
    ylim_vec = plt.gca().get_ylim()


    if i == 0:
        plt.title('Trends of words used in Season 2')
        plt.xticks([])
    else:
        [
            plt.text(
                x=viz_start_date + pd.Timedelta('30d'),
                y=max(ylim_vec) - 0.85*j - 2,
                s=cat + ' words',
                c=col,
                fontsize=18,
                fontstyle='italic'
            ) for j, (cat, col) in enumerate(cat_cmap.items())
        ]


    plt.ylabel(f'{est_fn.__name__.replace("nan","")} of z-scored trends')
    sns.despine(trim=True, offset=5, ax=plt.gca(), bottom=i==0)

plt.tight_layout()

plt.savefig('figures/hotds2-bulk-agg-word-trends.png')
plt.savefig('figures/hotds2-bulk-agg-word-trends.svg')

plt.show()

g = sns.lmplot(
    agg_show_df,
    x='value',
    y='z_value',
    hue='category',
    col='word_metric',
    col_order=usage_order,
    palette=coarse_cat_cmap,
    hue_order=coarse_cat_cmap.keys(),
    markers='.',
    scatter_kws={'s': 30, 'alpha': 0.6},
    aspect=0.8,
    height=5,
    legend=False,
    facet_kws={'sharex':False},
)

plt.ylim([-3, 8])

g.set_titles('')
g.set_ylabels('median z-scored trends')

[
    g.axes[0,0].text(
        x=3, y=8-i, s=cat + ' words', c=col,
        fontsize=18, fontstyle='italic', va='top'
    ) for i, (cat, col) in enumerate(coarse_cat_cmap.items())
]

[
    ax.set_xlabel(k) for k, ax in g.axes_dict.items()
]

g.fig.suptitle(
    'Relationship between word usage & searches after show air',
    fontsize=18, y=1, x=0.52,
)
sns.despine(trim=True, offset=5)
g.tight_layout(w_pad=1)


plt.savefig('figures/hotds2-after-air-trends-vs-usage.png')
plt.savefig('figures/hotds2-after-air-trends-vs-usage.svg')

plt.show()
