Visualize clusters of the weird noise

1. Import modules

import numpy as np
import pandas as pd
import warnings
import gc

import librosa
import librosa.display
from IPython.display import Audio

import scipy as sp
import scipy.io as scio
from scipy import signal

from sklearn import metrics
from sklearn.cluster import KMeans
from sklearn.manifold import MDS

from tqdm.notebook import tqdm

import seaborn as sns
import matplotlib.pyplot as plt
from matplotlib import rcParams

rcParams['font.family'] = 'Overpass Nerd Font'
rcParams['font.size'] = 18
rcParams['axes.titlesize'] = 20
rcParams['axes.labelsize'] = 18
rcParams['axes.linewidth'] = 1.5
rcParams['lines.linewidth'] = 1.5
rcParams['lines.markersize'] = 20
rcParams['patch.linewidth'] = 1.5
rcParams['xtick.labelsize'] = 18
rcParams['ytick.labelsize'] = 18
rcParams['xtick.major.width'] = 2
rcParams['xtick.minor.width'] = 2
rcParams['ytick.major.width'] = 2
rcParams['ytick.minor.width'] = 2
rcParams['savefig.dpi'] = 300
rcParams['savefig.transparent'] = False
rcParams['savefig.facecolor'] = 'white'
rcParams['savefig.format'] = 'svg'
rcParams['savefig.pad_inches'] = 0.5
rcParams['savefig.bbox'] = 'tight'

2. Import data

wav_file = 'data/recording.wav'
Fs, data = scio.wavfile.read(wav_file)
Audio(data=data, rate=Fs)

t_range = [5, 115] # limit time after recording and before ending

y = data.astype(float)
t = np.arange(len(data)) / Fs

select_loc = (t >= t_range[0]) & (t <= t_range[1])
t, y = t[select_loc], y[select_loc]
t = t - t[0]

N = len(y)
y = (y - np.mean(y)) / np.std(y)

S_db = librosa.amplitude_to_db(
    np.abs(librosa.stft(y)),
    ref=np.max
)

def _plt_spectrum():
    librosa.display.specshow(
        S_db,
        sr=Fs,
        y_axis='linear',
        x_axis='s',
        ax=plt.gca()
    )
    plt.ylim([500, 12000])
    ttl_add = ''

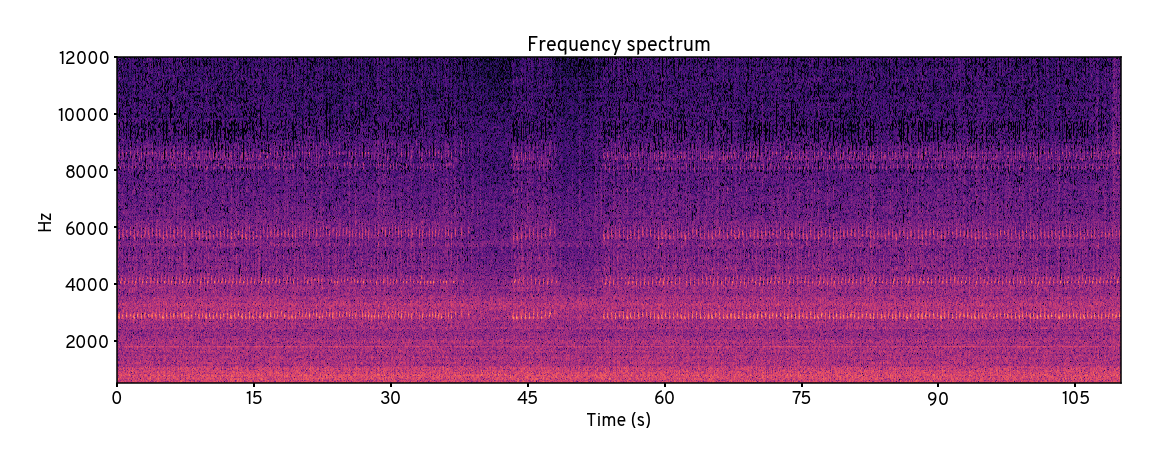

    plt.title('Frequency spectrum' + ttl_add)

plt.figure(figsize=(18,6))

_plt_spectrum()
plt.savefig('figures/spectrum-full.svg')

plt.figure(figsize=(10,6))
_plt_spectrum()

for t_range in [
    [21, 23],
    [81, 83],
    [93, 95]
]:
    t0, tf = t_range
    plt.xlim(t_range)

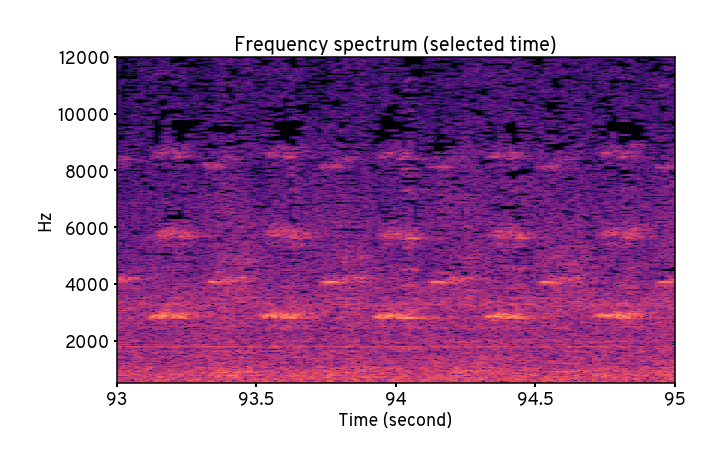

    plt.title('Frequency spectrum' + ' (selected time)')
    plt.xlabel('Time (second)')
    plt.savefig(f'figures/spectrum-selected_{t0}-{tf}.svg')

gc.collect()

6656

3. Construct features

win_anly_sec = 0.8
win_step_sec = 0.2

freq_range = [800, 16000]

win_anly_pnt = int(win_anly_sec * Fs)
win_step_pnt = int(win_step_sec * Fs)

Pyy_collection = []

for ind_start in range(0, len(y)-win_anly_pnt, win_step_pnt):
    ind_end = ind_start + win_anly_pnt
    y_win = y[ind_start:ind_end]
    f, Pyy = signal.periodogram(y_win, Fs)
    loc_f = (f >= freq_range[0]) & (f <= freq_range[1])
    f = f[loc_f]
    Pyy = Pyy[loc_f]
    Pyy_collection.append(dict(
        t0 = ind_start / Fs,
        f = f,
        Pyy = Pyy
    ))

Pyy_df = pd.DataFrame(Pyy_collection)

num_bands = 200

freq_bands = np.logspace(
    np.log10(freq_range[0]-1e-5),
    np.log10(freq_range[1]+1e-5),
    num_bands+1
)

freq_feat_df = []

for Pyy_dict in Pyy_collection:
    py_df = pd.DataFrame(Pyy_dict).assign(
        log_P = lambda x: np.log10(x['Pyy']),
        band = lambda x: np.digitize(x['f'], bins=freq_bands)
    )

    freq_feat_df.append(dict(
        t0 = Pyy_dict['t0'],
        band_index = range(num_bands),
        X = py_df.groupby('band').log_P.agg('mean').to_numpy(),
        # X = py_df.groupby('band').Pyy.agg('median').to_numpy()
    ))

freq_feat_df = pd.DataFrame(freq_feat_df)

4. Clustering

cluster_num_vec = range(2, 10)

X = np.vstack(freq_feat_df.X.to_list())
cluster_metrics = []
for k in tqdm(cluster_num_vec):
    clusterer = KMeans(n_clusters=k, n_init=20, max_iter=1000).fit(X)
    out_labels = clusterer.labels_
    out_inertia = clusterer.inertia_
    out_silhouette = metrics.silhouette_score(X, out_labels, metric='euclidean')
    cluster_metrics.append(dict(
        k = k,
        labels = out_labels,
        inertia = out_inertia,
        silhouette = out_silhouette
    ))

cluster_metrics = pd.DataFrame(cluster_metrics)
cluster_metrics['num_clusters'] = cluster_metrics['k']

sns.relplot(
    data = cluster_metrics.melt(
        id_vars='num_clusters',
        value_vars=['inertia', 'silhouette'],
        var_name='metric'
    ),
    x = 'num_clusters',
    y = 'value',
    kind = 'line',
    color='k',
    marker='o',
    markeredgecolor='none',
    markersize=15,
    lw=3,
    row = 'metric',
    facet_kws = {'sharey': False},
    height=4,
    aspect=2
)
sns.despine(trim=True, offset=10)

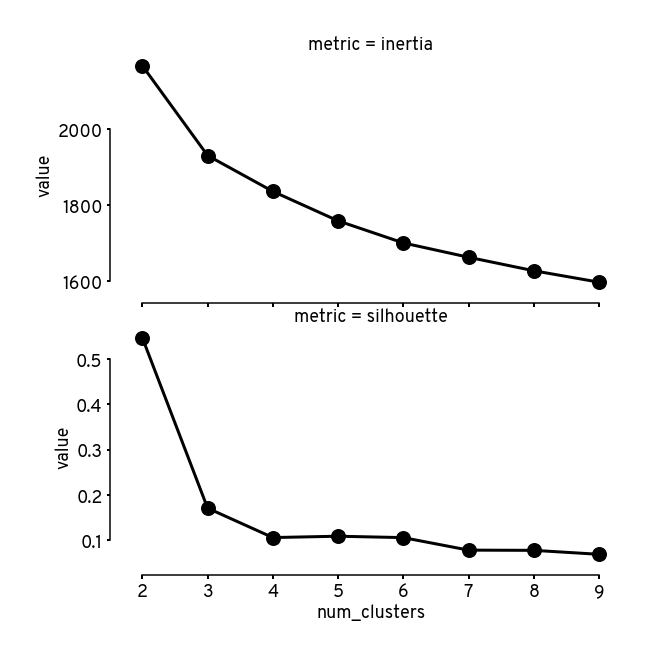

plt.savefig('figures/kmeans-metrics.svg')
plt.show()

chosen_k = 4
freq_feat_df['cluster'] = cluster_metrics.query('k == @chosen_k').labels.to_list()[0]

warnings.filterwarnings('ignore')

plt.figure(figsize=(18,10))
plt.subplot2grid((4,1), (0,0), rowspan=3)
sns.lineplot(
    data=freq_feat_df.explode(['X', 'band_index']),
    x='band_index',
    y='X',
    hue='cluster',
    palette='Dark2',
    lw=2,
    alpha=0.8,
    # ci='sd'
)

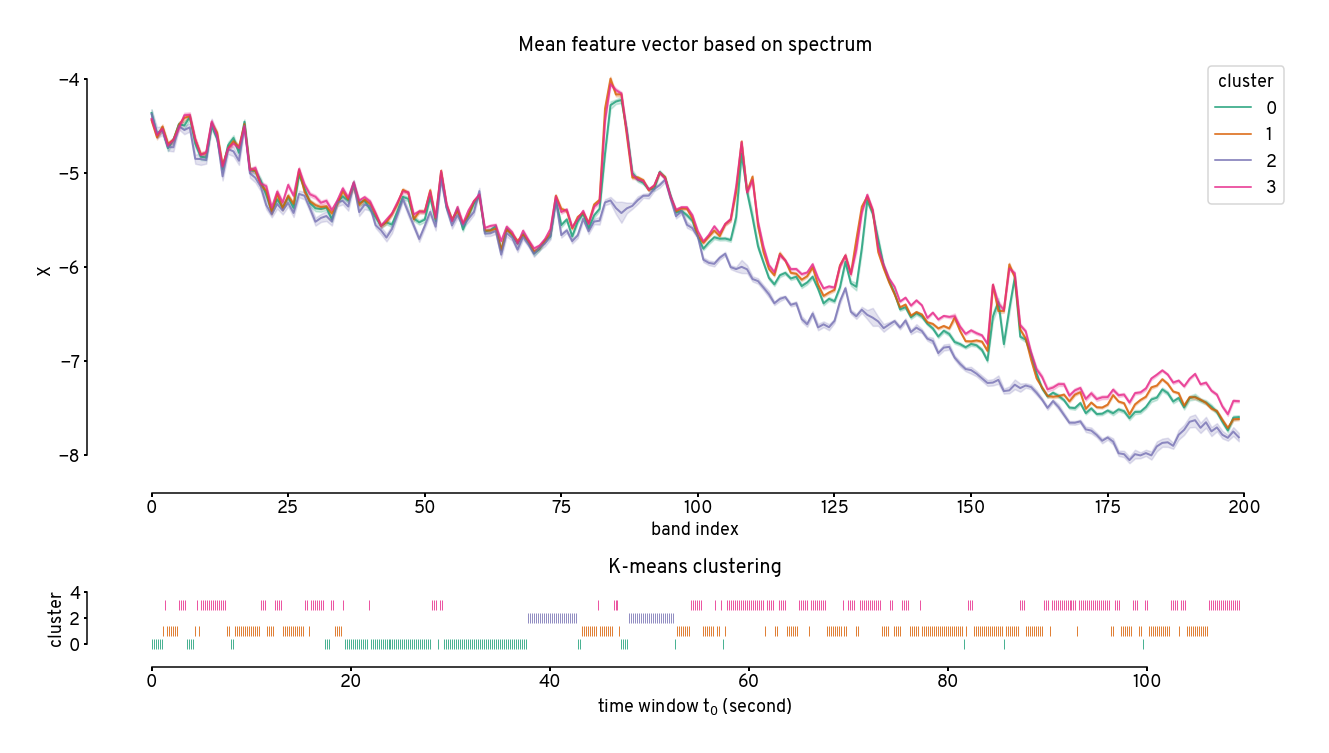

plt.title('Mean feature vector based on spectrum')
plt.xlabel('$X$')
plt.xlabel('band index')
plt.subplot2grid((4,1), (3,0))

sns.scatterplot(
    data=freq_feat_df,
    x="t0",
    y="cluster",
    s=100,
    marker='|',
    hue='cluster',
    palette='Dark2',
    edgecolors=None,
    alpha=0.99,
    ci=None,
    legend=False
)
plt.ylim([-1, chosen_k+1])
plt.xlabel('time window t$_0$ (second)')
plt.title('K-means clustering')

sns.despine(trim=True, offset=10)
plt.tight_layout()

plt.savefig('figures/features-and-clusters.svg')
plt.show()

5. Embedding

embedding = MDS(n_components=2, normalized_stress='auto')
X_proj = embedding.fit_transform(X)

plt.figure(figsize=(10,8))
sns.scatterplot(
    x = X_proj[:,0],
    y = X_proj[:,1],
    hue=freq_feat_df['cluster'],
    # hue=freq_feat_df['t0'],
    palette='Dark2',
    s=120,
    edgecolor='none',
    alpha=0.5,
    ci=None,
)

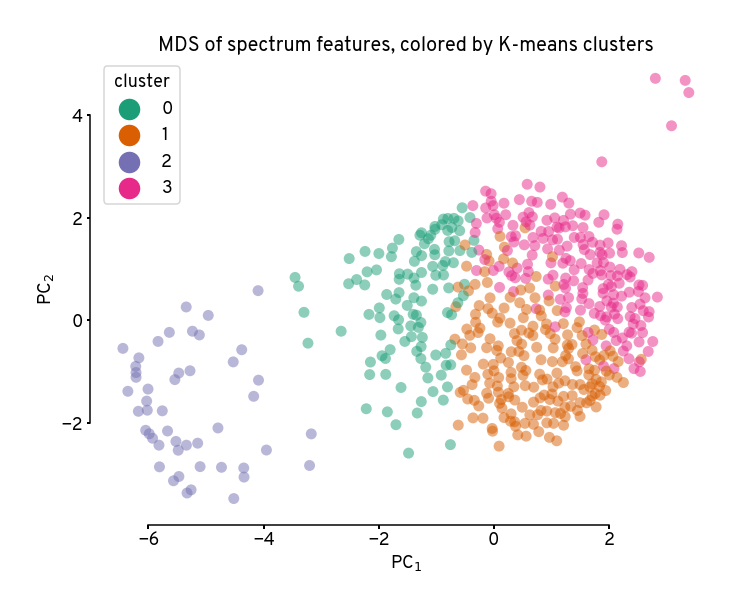

plt.title('MDS of spectrum features, colored by K-means clusters')
plt.xlabel('PC$_1$')
plt.ylabel('PC$_2$')
sns.despine(trim=True, offset=5)
plt.tight_layout()
plt.savefig('figures/mds-colored-by-kmeans.svg')

plt.show()
