Visualization of words used in House of the Dragon Season 2 and their “rarity”

This notebook assumes the steps from collect,ipynb are already done.

The necessary data are in data folder.

• hotd-s2-words.csv: processed word usage from show S2 scripts.

• data4seo-word-trends-[90d,12m].json: keyword trends data using DataforSEO API.

The figure outputs are saved in figures folder:

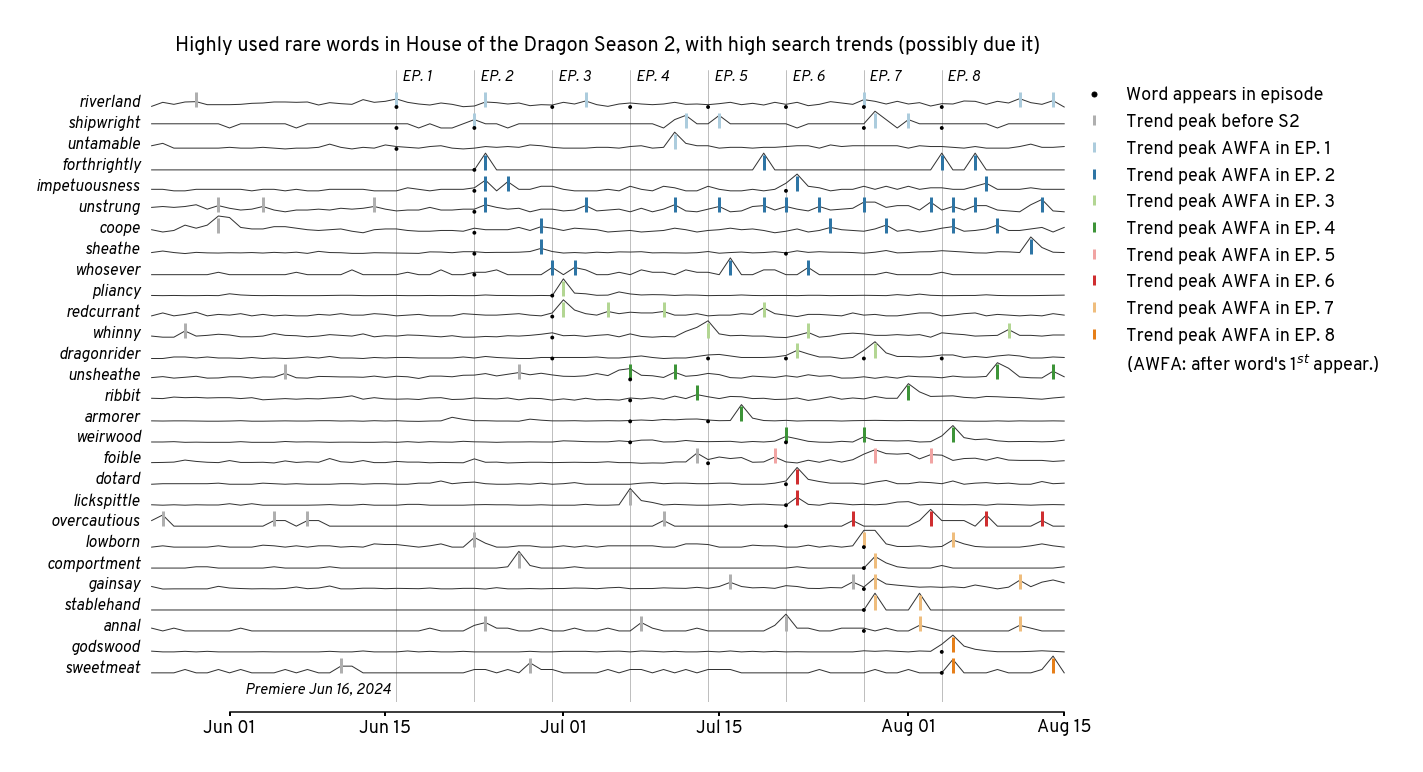

• hotds2-rare-word-trends.svg: Rare word trends (90d)

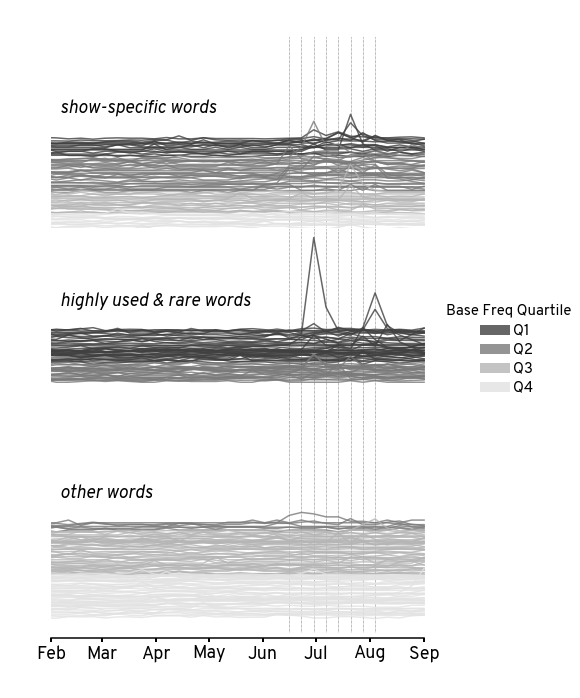

• hotds2-stacked-word-trends-colored-by-base_freq_quartile.svg: Individual word trends (more coarse), colored and sorted by word rareness

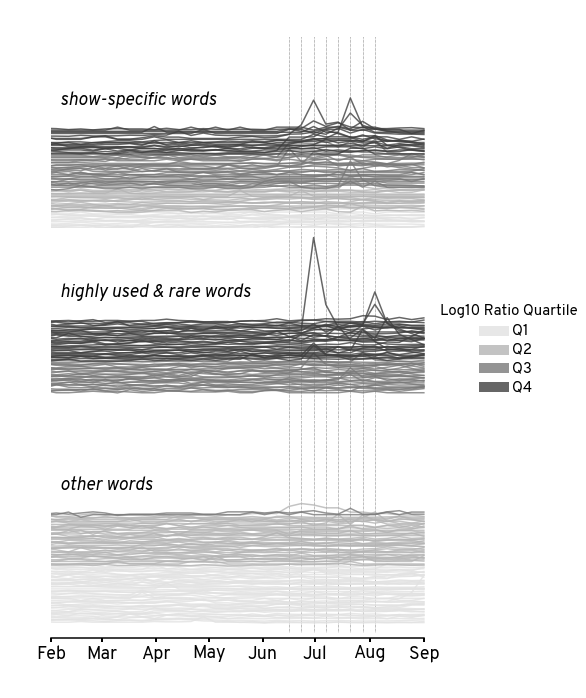

• hotds2-stacked-word-trends-colored-by-log10_ratio_quartile.svg: Individual word trends (more coarse), colored and sorted by their relative usage in the show scripts

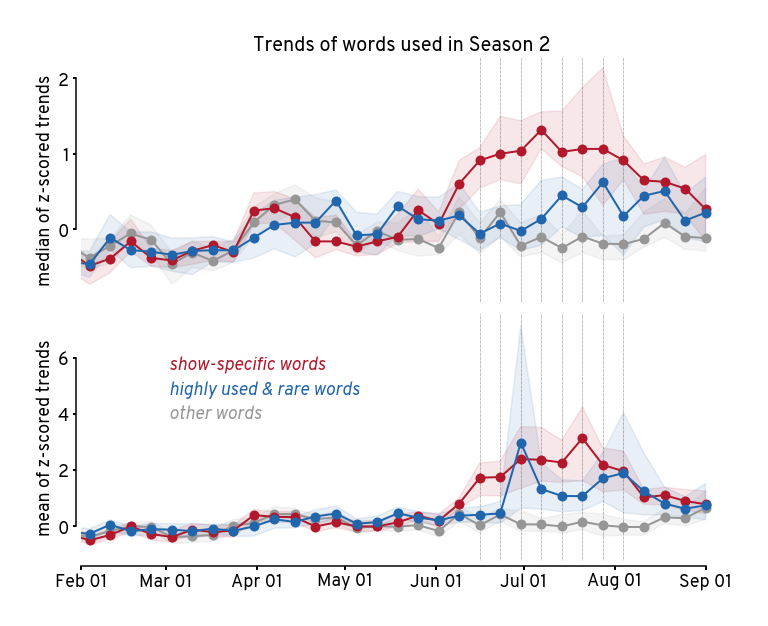

• hotds2-bulk-agg-word-trends.svg: Bulk trends across time

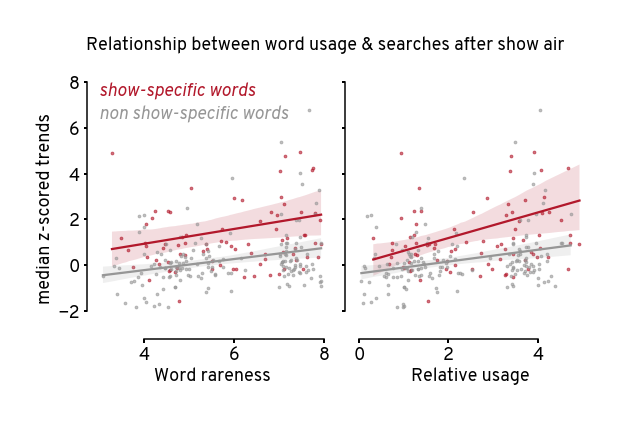

• hotds2-after-air-trends-vs-usage.svg: Aggregate trends after show air and word’s usage metrics

Import packages & define paths

Show code cell source Hide code cell source

import os
import re
import json

import numpy as np
import pandas as pd
from scipy import signal, interpolate

import matplotlib.pyplot as plt
from matplotlib import rcParams
import matplotlib.dates as mdates
import seaborn as sns

Show code cell source Hide code cell source

# plot configs
rcParams['font.family'] = 'Overpass Nerd Font'
rcParams['font.size'] = 18
rcParams['axes.titlesize'] = 20
rcParams['axes.labelsize'] = 18
rcParams['axes.linewidth'] = 1.5
rcParams['lines.linewidth'] = 1.5
rcParams['lines.markersize'] = 20
rcParams['patch.linewidth'] = 1.5
rcParams['xtick.labelsize'] = 18
rcParams['ytick.labelsize'] = 18
rcParams['xtick.major.width'] = 2
rcParams['xtick.minor.width'] = 2
rcParams['ytick.major.width'] = 2
rcParams['ytick.minor.width'] = 2
rcParams['savefig.dpi'] = 300
rcParams['savefig.transparent'] = False
rcParams['savefig.facecolor'] = 'white'
rcParams['savefig.format'] = 'svg'
rcParams['savefig.pad_inches'] = 0.5
rcParams['savefig.bbox'] = 'tight'

# data file for word data frame
word_file_path = 'data/hotd-s2-words.csv'

# data file for dataforseo trend queries
trend_90d_file_path = 'data/data4seo-word-trends-90d.json'
trend_12m_file_path = 'data/data4seo-word-trends-12m.json'

# output figure directory
fig_dir = 'figures'

Load word data

word_df = (
    pd.read_csv(word_file_path)
    .query('is_selected')
    .reset_index(drop=True)
)

word_df['air_date'] = pd.to_datetime(word_df['air_date'])
num_episodes = word_df['episode'].nunique()
word_df

	word	script_freq	base_freq	est_syll	log10_ratio	is_high_rare	season	episode	episode_title	is_hotd	is_high_rare_selected	is_hotd_selected	is_other_selected	is_selected	air_date	num_episodes
0	advance	0.000226	4.470000e-05	3	0.703583	False	2	1	A Son for a Son	False	False	False	True	True	2024-06-16	3
1	aegon	0.007454	4.370000e-07	2	4.231923	True	2	1	A Son for a Son	True	False	True	False	True	2024-06-16	8
2	andal	0.000452	7.590000e-08	2	3.774679	True	2	1	A Son for a Son	True	False	True	False	True	2024-06-16	1
3	answer	0.000226	1.480000e-04	2	0.183629	False	2	1	A Son for a Son	False	False	False	True	True	2024-06-16	7
4	arryn	0.000226	1.740000e-07	2	3.113341	True	2	1	A Son for a Son	True	False	True	False	True	2024-06-16	3
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
592	victorious	0.000192	3.720000e-06	3	1.712286	False	2	8	The Queen Who Ever Was	False	False	False	True	True	2024-08-04	1
593	warrior	0.000192	1.450000e-05	2	1.121461	False	2	8	The Queen Who Ever Was	True	False	True	False	True	2024-08-04	2
594	waver	0.000192	5.620000e-07	2	2.533093	True	2	8	The Queen Who Ever Was	False	False	False	True	True	2024-08-04	2
595	winter	0.000192	7.760000e-05	2	0.392967	False	2	8	The Queen Who Ever Was	True	False	True	False	True	2024-08-04	3
596	wylde	0.000192	2.000000e-07	2	2.981799	True	2	8	The Queen Who Ever Was	True	False	True	False	True	2024-08-04	3

597 rows × 16 columns

Show code cell source Hide code cell source

word_first_appearance = (
    word_df.sort_values(['episode'])
    .groupby('word').head(1)
    .reset_index(drop=True)
)

word_first_appearance

	word	script_freq	base_freq	est_syll	log10_ratio	is_high_rare	season	episode	episode_title	is_hotd	is_high_rare_selected	is_hotd_selected	is_other_selected	is_selected	air_date	num_episodes
0	advance	0.000226	4.470000e-05	3	0.703583	False	2	1	A Son for a Son	False	False	False	True	True	2024-06-16	3
1	rumble	0.000226	2.690000e-06	2	1.924138	False	2	1	A Son for a Son	False	False	False	True	True	2024-06-16	4
2	riverland	0.000678	7.940000e-08	3	3.931191	True	2	1	A Son for a Son	False	True	False	False	True	2024-06-16	7
3	refuse	0.000678	2.450000e-05	3	1.441846	False	2	1	A Son for a Son	False	False	False	True	True	2024-06-16	4
4	ratcatcher	0.000452	2.290000e-08	3	4.295085	True	2	1	A Son for a Son	True	False	True	False	True	2024-06-16	4
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
260	humor	0.000192	1.550000e-05	2	1.092497	False	2	8	The Queen Who Ever Was	False	False	False	True	True	2024-08-04	1
261	headsman	0.000192	3.470000e-08	2	3.742499	True	2	8	The Queen Who Ever Was	False	True	False	False	True	2024-08-04	1
262	halfheartedly	0.000192	6.170000e-08	4	3.492544	True	2	8	The Queen Who Ever Was	False	True	False	False	True	2024-08-04	1
263	godswood	0.000192	1.510000e-08	2	4.103852	True	2	8	The Queen Who Ever Was	False	True	False	False	True	2024-08-04	1
264	futilely	0.000192	7.590000e-08	4	3.402587	True	2	8	The Queen Who Ever Was	False	True	False	False	True	2024-08-04	1

265 rows × 16 columns

show_start_date = word_df['air_date'].min()
show_end_date = word_df['air_date'].max()

show_start_date, show_end_date

(Timestamp('2024-06-16 00:00:00'), Timestamp('2024-08-04 00:00:00'))

Define time ranges

# summer start date
summer_startdate = pd.to_datetime('2024-06-01')

# max date of interest (relevant for 90d)
max_date = pd.to_datetime('2024-08-15')

# shift back a week for some leeway (relevant for 12m)
base_date = show_start_date - pd.Timedelta(7, unit='day')

Fine-grained 90-day trends for highly used rare words

Process trends data

Show code cell source Hide code cell source

def process_trends(
    trend_file,
    base_date=None,
):

    # load raw data
    with open(trend_file, 'r') as f:
        raw_data = json.load(f)

    assert all([len(x['result']) == 1 for x in raw_data])

    # get keyword trends data
    trend_df = []

    for rd in raw_data:
        assert len(rd['result']) == 1
        trends = [
            x for x in rd['result'][0]['items']
            if x['type'] == 'dataforseo_trends_graph'
        ]
        assert len(trends) == 1
        trends = trends[0]
        trends_words = trends['keywords']

        trends_data = pd.DataFrame(trends['data'])
        trends_data['word'] = [trends_words] * len(trends_data)
        trends_data = (
            trends_data.explode(['word', 'values'])
            .rename(columns={'values': 'value'})
            .astype({'value':'float'})
            .reset_index(drop=True)
        )
        trend_df.append(trends_data)

    trend_df = pd.concat(trend_df, ignore_index=True)

    # process dates
    trend_df['date_from'] = pd.to_datetime(trend_df['date_from'])
    trend_df['date_to'] = pd.to_datetime(trend_df['date_to'])
    trend_df['num_days'] = (trend_df['date_to'] - trend_df['date_from']).dt.days
    trend_df['date_center'] = (
        trend_df['date_from'] +
        pd.to_timedelta(np.round(trend_df['num_days'] / 2), unit='d')
    )

    # stats for norm
    min_max_df = (
        trend_df.groupby('word')
        ['value'].agg(['min', 'max'])
        .add_suffix('_value')
        .astype('float')
        .reset_index()
    )

    # other stats with optionally from base
    stat_df_base_opt = (
        (
            trend_df.query('date_to < @base_date')
            if base_date is not None
            else trend_df
        )
        .groupby('word')
        ['value'].agg(
            mean = 'mean',
            std = 'std',
            median = 'median',
            iqr = lambda x: np.subtract(*np.percentile(x, [75, 25]))
        )
        .add_suffix('_value')
        .astype('float')
        .reset_index()
    )

    # merge stats
    trend_df = (
        trend_df
        .merge(
            min_max_df,
            how='left'
        )
        .merge(
            stat_df_base_opt,
            how='left'
        )
        .query('max_value > 0')
        .reset_index(drop=True)
    )

    # min-max normalize
    trend_df['mm_value'] = (
        (trend_df['value'] - trend_df['min_value']) /
        (trend_df['max_value'] - trend_df['min_value'])
    )

    # zscore scaling
    trend_df['z_value'] = (
        (trend_df['value'] - trend_df['mean_value']) /
        (trend_df['std_value'])
    )

    # robust scaling
    trend_df['r_value'] = (
        (trend_df['value'] - trend_df['median_value']) /
        (trend_df['iqr_value'])
    )

    trend_df = trend_df.drop(columns=[
        'min_value', 'max_value',
        'mean_value', 'std_value',
        'median_value', 'iqr_value'
    ])

    return trend_df

# note: don't need zscore for this one
trend_df = process_trends(trend_90d_file_path)
trend_df

	date_from	date_to	timestamp	value	word	num_days	date_center	mm_value	z_value	r_value
0	2024-05-25	2024-05-25	1716595200	2.0	annal	0	2024-05-25	0.166667	0.412931	1.000
1	2024-05-25	2024-05-25	1716595200	4.0	armorer	0	2024-05-25	0.030303	-0.200145	0.000
2	2024-05-25	2024-05-25	1716595200	0.0	comportment	0	2024-05-25	0.000000	-0.250608	NaN
3	2024-05-25	2024-05-25	1716595200	1.0	conciliator	0	2024-05-25	0.066667	0.346016	inf
4	2024-05-26	2024-05-26	1716681600	1.0	annal	0	2024-05-26	0.000000	-0.493503	0.000
...	...	...	...	...	...	...	...	...	...	...
5735	2024-08-21	2024-08-21	1724198400	3.0	woodpile	0	2024-08-21	0.027027	-0.361620	-0.250
5736	2024-08-22	2024-08-23	1724284800	2.0	whinny	1	2024-08-22	0.043478	-0.731282	-0.700
5737	2024-08-22	2024-08-23	1724284800	1.0	whosever	1	2024-08-22	0.142857	0.385623	1.000
5738	2024-08-22	2024-08-23	1724284800	4.0	wicke	1	2024-08-22	0.030303	-0.654448	-0.625
5739	2024-08-22	2024-08-23	1724284800	60.0	woodpile	1	2024-08-22	0.797297	4.805825	14.000

5740 rows × 10 columns

Select & process dates

Show code cell source Hide code cell source

# select date range and convert date to summer / week days
trend_df = (
    trend_df
    .assign(date = pd.to_datetime(trend_df['date_from']))
    .query('date <= @max_date')
    .reset_index(drop=True)
)

# the selected date range should allow this
# if not, can remove
assert all(trend_df['date_from'] == trend_df['date_to'])

# filter only needed columns
# and add summer / week days if needed
# use `mm_value` aka min-max norm values onwards
trend_df = (
    trend_df
    .filter(['word', 'date', 'mm_value'])
    .assign(
        summer_day = (trend_df['date'] - summer_startdate).dt.days + 1,
        week_day = trend_df['date'].dt.strftime('%w').astype('int') + 1
    )
    .rename(columns={'mm_value': 'value'})
    .sort_values(['word', 'date'])
    .fillna({'value': 0})
    .reset_index(drop=True)
)

day_vec = np.arange(trend_df['summer_day'].min(), trend_df['summer_day'].max()+1)

# this is for peak detection
assert all(1 == (
    trend_df
    .groupby('word')
    ['date'].diff()
    .dropna()
    .dt.days
))

trend_df

	word	date	value	summer_day	week_day
0	annal	2024-05-25	0.166667	-6	7
1	annal	2024-05-26	0.000000	-5	1
2	annal	2024-05-27	0.166667	-4	2
3	annal	2024-05-28	0.000000	-3	3
4	annal	2024-05-29	0.000000	-2	4
...	...	...	...	...	...
5307	woodpile	2024-08-11	0.162162	72	1
5308	woodpile	2024-08-12	0.013514	73	2
5309	woodpile	2024-08-13	0.040541	74	3
5310	woodpile	2024-08-14	0.000000	75	4
5311	woodpile	2024-08-15	0.040541	76	5

5312 rows × 5 columns

Detect & process peaks

peak_kws = dict(
    prominence=0.2,
    height=0.3
)

Show code cell source Hide code cell source

def binarize_locations(locs, length):
    x = np.full(length, False)
    x[locs] = True
    return x

# find peaks
trend_df['is_peak'] = (
    trend_df.groupby('word')
    ['value'].apply(
        lambda x: binarize_locations(
            locs = signal.find_peaks(np.array(x), **peak_kws)[0],
            length = len(x)
        )
    )
    .explode()
    .astype('bool')
    .values
)

trend_df

	word	date	value	summer_day	week_day	is_peak
0	annal	2024-05-25	0.166667	-6	7	False
1	annal	2024-05-26	0.000000	-5	1	False
2	annal	2024-05-27	0.166667	-4	2	False
3	annal	2024-05-28	0.000000	-3	3	False
4	annal	2024-05-29	0.000000	-2	4	False
...	...	...	...	...	...	...
5307	woodpile	2024-08-11	0.162162	72	1	False
5308	woodpile	2024-08-12	0.013514	73	2	False
5309	woodpile	2024-08-13	0.040541	74	3	False
5310	woodpile	2024-08-14	0.000000	75	4	False
5311	woodpile	2024-08-15	0.040541	76	5	False

5312 rows × 6 columns

Merge with word_df for air dates

Show code cell source Hide code cell source

peak_df = (
    trend_df.query('is_peak')
    .merge(
        word_first_appearance,
        how='left'
    )
    .rename(columns={
        'air_date': 'first_air_date'
    })
)
assert peak_df.isna().sum().sum() == 0

peak_df['first_air_summer_day'] = (peak_df['first_air_date'] - summer_startdate).dt.days + 1
peak_df['peak_delay'] = (peak_df['date'] - peak_df['first_air_date']).dt.days

peak_df['appear_after_before_ratio'] = (
    (day_vec.max() - peak_df['first_air_summer_day']) /
    (peak_df['first_air_summer_day'] - day_vec.min())
)

peak_df['first_episode'] = peak_df.apply(
    lambda x: x['episode'] if x['peak_delay'] >= 0 else -1,
    axis=1
)

Show code cell source Hide code cell source

# based on first episode appearances
word_order = list(
    peak_df
    .query('peak_delay >= 0')
    .sort_values(['episode', 'peak_delay'])
    ['word'].unique()
)

word_order.extend(list(set(peak_df['word']) - set(word_order)))

Select words that may be influenced by the show

Show code cell source Hide code cell source

peak_count_df = (
    (
        peak_df.set_index([
            'word', 'appear_after_before_ratio',
        ])['peak_delay'] >= 0
    )
    .reset_index()
    .value_counts()
    .reset_index()
    .replace({'peak_delay': {True: 'after_air', False: 'before_air'}})
    .pivot(
        index=['word', 'appear_after_before_ratio'],
        columns='peak_delay',
        values='count'
    )
    .fillna(0).astype(int)
    .reset_index()
)
peak_count_df.columns.name = None

peak_count_df['total'] = peak_count_df['after_air'] + peak_count_df['before_air']
peak_count_df['trend_after_before_ratio'] = peak_count_df['after_air'] / peak_count_df['before_air']

# peak_count_df['trend_after_air_ratio'] = peak_count_df['after_air'] / peak_count_df['total']

peak_count_df

	word	appear_after_before_ratio	after_air	before_air	total	trend_after_before_ratio
0	annal	0.281250	2	3	5	0.666667
1	armorer	0.906977	1	0	1	inf
2	comportment	0.281250	1	1	2	1.000000
3	conciliator	1.277778	1	1	2	1.000000
4	coope	1.827586	5	1	6	5.000000
...	...	...	...	...	...	...
59	weirwood	0.906977	3	0	3	inf
60	whinny	1.277778	3	1	4	3.000000
61	whosever	1.827586	4	0	4	inf
62	wicke	1.827586	0	2	2	0.000000
63	woodpile	0.281250	0	2	2	0.000000

64 rows × 6 columns

thres_ratio = 2

selected_high_rare = word_df.query('is_high_rare_selected')['word'].unique()

selected_word_df = (
    peak_count_df
    .query(
        '(after_air > 0 and before_air == 0) or '
        '(trend_after_before_ratio > @thres_ratio * appear_after_before_ratio)'
    )
    .sort_values(
        ['trend_after_before_ratio', 'after_air', 'before_air'],
        ascending=[False, False, True]
    )
    .query('word in @selected_high_rare')
    .reset_index(drop=True)
)

selected_words = selected_word_df['word'].to_list()
selected_word_df

	word	appear_after_before_ratio	after_air	before_air	total	trend_after_before_ratio
0	shipwright	2.727273	5	0	5	inf
1	forthrightly	1.827586	4	0	4	inf
2	impetuousness	1.827586	4	0	4	inf
3	redcurrant	1.277778	4	0	4	inf
4	whosever	1.827586	4	0	4	inf
5	weirwood	0.906977	3	0	3	inf
6	dragonrider	1.277778	2	0	2	inf
7	ribbit	0.906977	2	0	2	inf
8	sheathe	1.827586	2	0	2	inf
9	stablehand	0.281250	2	0	2	inf
10	armorer	0.906977	1	0	1	inf
11	dotard	0.438596	1	0	1	inf
12	godswood	0.154930	1	0	1	inf
13	pliancy	1.277778	1	0	1	inf
14	untamable	2.727273	1	0	1	inf
15	riverland	2.727273	6	1	7	6.000000
16	coope	1.827586	5	1	6	5.000000
17	unstrung	1.827586	12	3	15	4.000000
18	foible	0.640000	3	1	4	3.000000
19	whinny	1.277778	3	1	4	3.000000
20	unsheathe	0.906977	4	2	6	2.000000
21	lowborn	0.281250	2	1	3	2.000000
22	overcautious	0.438596	4	4	8	1.000000
23	gainsay	0.281250	2	2	4	1.000000
24	sweetmeat	0.154930	2	2	4	1.000000
25	comportment	0.281250	1	1	2	1.000000
26	lickspittle	0.438596	1	1	2	1.000000
27	annal	0.281250	2	3	5	0.666667

Visualize of words that are possibly influenced by the show

Show code cell source Hide code cell source

selected_word_order = [
    x for x in word_order if x in selected_words
][::-1]

selected_trends = (
    trend_df
    .query('word in @selected_words')
    .reset_index(drop=True)
)

selected_trends['word_idx'] = selected_trends['word'].map({
    x: i for i, x in enumerate(selected_word_order)
})

selected_trends['value'] = selected_trends['value']*0.8 + selected_trends['word_idx']

Show code cell source Hide code cell source

plt.figure(figsize=(19,10))

first_ep_cmap = dict(zip(
    [-1] + list(range(1,num_episodes+1,1)),
    ['#afafaf'] + sns.color_palette('Paired', num_episodes, desat=0.8)
))

# plot peak ~ markers
sns.stripplot(
    peak_df.query('word in @selected_words'),
    x='date',
    y='word',
    hue='first_episode',
    order=selected_word_order,
    orient='y',
    hue_order=first_ep_cmap.keys(),
    palette=first_ep_cmap,
    marker=2,
    s=15,
    linewidth=3,
    jitter=0,
    zorder=3,
)

# overlay (shifted) trend series
sns.lineplot(
    selected_trends,
    x='date',
    y='value',
    units='word',
    estimator=None,
    lw=1,
    c='.2',
    zorder=2,
)

# when word appears
sns.scatterplot(
    word_df.query('word in @selected_words'),
    x='air_date',
    y='word',
    c='k',
    zorder=3,
    marker='.',
    edgecolor='none',
    s=60,
)

# when episode airs
[
    plt.axvline(x=x, color='.5', ls='-', lw=0.5, zorder=1)
    for x in word_df['air_date'].drop_duplicates()
]

# put episode names
[
    plt.text(
        x=r['air_date'] + pd.Timedelta('12h'),
        y=len(selected_words) + 0.25,
        s='EP. %d'%(r['episode']),
        fontstyle='italic',
        fontsize=15
    )
    for _, r in word_df[['episode','air_date',]].drop_duplicates().iterrows()
]

plt.text(
    x=show_start_date - pd.Timedelta('12h'),
    y=-1,
    s=show_start_date.strftime('Premiere %b %d, %Y'),
    fontstyle='italic',
    fontsize=15,
    ha='right'
)

# put words right next to trends (aka y-axis removed)
[
    plt.text(
        x=trend_df['date'].min() - pd.Timedelta('1D'),
        y=w,
        s=w,
        fontstyle='italic',
        ha='right',
        fontsize=16
    )
    for w in selected_words
]

# legends
plt.legend(
    handles=[
        plt.Line2D(
            [0],[0],
            label='Word appears in episode',
            color='k',
            marker='.',
            ls='none',
            markersize=10
        )
    ] + [
        plt.Line2D(
            [0],[0],
            label=(
                'Trend peak AWFA in EP. %d' %(k) if k > 0
                else 'Trend peak before S2'
            ),
            color=v,
            marker='|',
            ls='none',
            markersize=10,
            markeredgewidth=3
        )
        for k, v in first_ep_cmap.items()
    ] + [
        plt.Line2D(
            [0], [0],
            label = "(AWFA: after word's 1$^{st}$ appear.)",
            color = 'none',
            ls='none',
        )
    ],
    bbox_to_anchor = (0.95,1),
    frameon=False,
    fontsize=18,
)


plt.gca().invert_yaxis()
plt.yticks([])
plt.xlabel(None)
plt.ylabel(None)
sns.despine(trim=True, offset=10, left=True)

plt.title(
    'Highly used rare words in House of the Dragon Season 2, ' \
    'with high search trends (possibly due it)',
    y=1.02
)

plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%b %d'))

plt.tight_layout()

plt.savefig('figures/hotds2-rare-word-trends.png')
plt.savefig('figures/hotds2-rare-word-trends.svg')
plt.show()

Coarse 12-month trends for different highly used words

Process trends data

Show code cell source Hide code cell source

def interpolate_trends(
    trend_df,
    freq='7d',
    xcol='date_from',
    interp1d_kws=dict()
):
    date_vec = pd.date_range(
        trend_df['date_from'].min(),
        trend_df['date_to'].max(),
        freq=freq
    )

    trend_df = (
        trend_df
        .groupby(['word'])
        .apply(
            lambda x: pd.DataFrame({
                k: interpolate.interp1d(
                    x=(x[xcol] - date_vec.min()).dt.days.to_numpy(),
                    y=x[k],
                    **interp1d_kws
                )(
                    (date_vec - date_vec.min()).days
                )
                for k in trend_df.filter(regex='.*value.*').columns
            }).assign(date = date_vec),
            include_groups=False
        )
        .reset_index()
    )

    trend_df = trend_df.drop(
        columns=trend_df.filter(regex='level_\d+').columns
    )

    return trend_df

# need to normalize by the base period (i.e. before the show)
# in order to plot the comparisons
trend_df = process_trends(
    trend_12m_file_path,
    base_date=base_date,
)

trend_df

	date_from	date_to	timestamp	value	word	num_days	date_center	mm_value	z_value	r_value
0	2023-09-10	2023-09-16	1694304000	0.0	aggrieve	6	2023-09-13	0.000000	-0.466394	NaN
1	2023-09-10	2023-09-16	1694304000	12.0	annal	6	2023-09-13	0.315789	-0.867515	-0.545455
2	2023-09-10	2023-09-16	1694304000	37.0	armorer	6	2023-09-13	0.136986	-0.651425	-0.500000
3	2023-09-10	2023-09-16	1694304000	5.0	comportment	6	2023-09-13	0.131579	0.275681	0.666667
4	2023-09-10	2023-09-16	1694304000	0.0	conciliator	6	2023-09-13	0.000000	-1.364354	-1.000000
...	...	...	...	...	...	...	...	...	...	...
13007	2024-09-01	2024-09-06	1725148800	36.0	darling	5	2024-09-03	0.666667	2.751815	2.750000
13008	2024-09-01	2024-09-06	1725148800	17.0	terrible	5	2024-09-03	1.000000	3.854734	2.500000
13009	2024-09-01	2024-09-06	1725148800	10.0	constantly	5	2024-09-03	0.800000	1.816268	1.000000
13010	2024-09-01	2024-09-06	1725148800	44.0	rumble	5	2024-09-03	0.222222	-0.318202	-0.062500
13011	2024-09-01	2024-09-06	1725148800	51.0	anything	5	2024-09-03	1.000000	2.268248	2.333333

13012 rows × 10 columns

# interpolate so that taking averages / medians
# in `sns.relplot/lineplot` is valid
# to avoid cases with sparse time points
trend_df = interpolate_trends(
    trend_df,
    freq='7d',
    xcol='date_from',
    interp1d_kws=dict(
        kind='slinear',
        fill_value='extrapolate'
    )
)

Merge with word metadata

Show code cell source Hide code cell source

word_meta_df = (
    word_df
    .sort_values('log10_ratio')
    .groupby('word').tail(1)
    .filter(regex='word|freq|ratio|is_.*_selected')
)

assert (
    word_meta_df
    .filter(regex='is_.*')
    .any(axis=1)
    .all()
)

word_meta_df = (
    word_meta_df
    .melt(
        id_vars=['word', 'script_freq', 'base_freq', 'log10_ratio'],
        var_name='category'
    )
    .query('value')
    .drop(columns='value')
    .groupby(['word', 'category'])
    .agg('median')
    .reset_index()
)

Show code cell source Hide code cell source

word_meta_df['category'] = (
    word_meta_df['category']
    .str.replace('is_', '')
    .str.replace('_selected', '')
    .map({
        'other': 'other',
        'hotd': 'show-specific',
        'high_rare': 'highly used & rare',
    })
)

Show code cell source Hide code cell source

for k in ['script_freq', 'base_freq', 'log10_ratio']:
    word_meta_df[k + '_quartile'] = pd.qcut(
        word_meta_df[k],
        4,
        labels=['Q' + str(x+1) for x in range(4)],
        precision=10
    )

word_meta_df

	word	category	script_freq	base_freq	log10_ratio	script_freq_quartile	base_freq_quartile	log10_ratio_quartile
0	abe	other	0.000498	4.170000e-06	2.077172	Q3	Q3	Q2
1	able	other	0.000332	2.690000e-04	0.091465	Q3	Q4	Q1
2	achieve	other	0.000212	3.720000e-05	0.756252	Q2	Q4	Q1
3	addam	show-specific	0.000837	1.780000e-08	4.672333	Q4	Q1	Q4
4	advance	other	0.000487	4.470000e-05	1.037198	Q3	Q4	Q1
...	...	...	...	...	...	...	...	...
260	winter	show-specific	0.001807	7.760000e-05	1.367119	Q4	Q4	Q2
261	woman	show-specific	0.001217	2.240000e-04	0.735197	Q4	Q4	Q1
262	woodpile	highly used & rare	0.000279	7.080000e-08	3.595599	Q3	Q2	Q3
263	worker	show-specific	0.000391	2.690000e-05	1.162262	Q3	Q4	Q1
264	wylde	show-specific	0.000279	2.000000e-07	3.144602	Q3	Q2	Q3

265 rows × 8 columns

trend_df = trend_df.merge(
    word_meta_df,
    how='left',
    on='word'
)

trend_df

	word	value	mm_value	z_value	r_value	date	category	script_freq	base_freq	log10_ratio	script_freq_quartile	base_freq_quartile	log10_ratio_quartile
0	abe	34.0	0.209302	0.743071	0.4	2023-09-10	other	0.000498	4.170000e-06	2.077172	Q3	Q3	Q2
1	abe	35.0	0.232558	1.058068	0.6	2023-09-17	other	0.000498	4.170000e-06	2.077172	Q3	Q3	Q2
2	abe	32.0	0.162791	0.113076	0.0	2023-09-24	other	0.000498	4.170000e-06	2.077172	Q3	Q3	Q2
3	abe	29.0	0.093023	-0.831916	-0.6	2023-10-01	other	0.000498	4.170000e-06	2.077172	Q3	Q3	Q2
4	abe	28.0	0.069767	-1.146914	-0.8	2023-10-08	other	0.000498	4.170000e-06	2.077172	Q3	Q3	Q2
...	...	...	...	...	...	...	...	...	...	...	...	...	...
13047	wylde	2.0	0.333333	0.267418	NaN	2024-08-04	show-specific	0.000279	2.000000e-07	3.144602	Q3	Q2	Q3
13048	wylde	2.0	0.333333	0.267418	NaN	2024-08-11	show-specific	0.000279	2.000000e-07	3.144602	Q3	Q2	Q3
13049	wylde	2.0	0.333333	0.267418	NaN	2024-08-18	show-specific	0.000279	2.000000e-07	3.144602	Q3	Q2	Q3
13050	wylde	2.0	0.333333	0.267418	NaN	2024-08-25	show-specific	0.000279	2.000000e-07	3.144602	Q3	Q2	Q3
13051	wylde	2.0	0.333333	0.267418	NaN	2024-09-01	show-specific	0.000279	2.000000e-07	3.144602	Q3	Q2	Q3

13052 rows × 13 columns

Prepare for visualization

viz_start_date = pd.Timestamp('2024-02-01')
viz_stop_date = pd.Timestamp('2024-09-07')

Show code cell source Hide code cell source

cat_cmap = {
    'show-specific': '#b2182b',
    'highly used & rare': '#2166ac',
    'other': '#969696',
}

Show code cell source Hide code cell source

trend_df = trend_df.merge(
    trend_df
    .groupby(['category', 'word'])
    ['z_value'].max()
    .reset_index()
    .set_index('word')
    .groupby('category')
    .rank(method='dense')
    .rename(columns={'z_value': 'rank_z'})
    .reset_index()
)

Show code cell source Hide code cell source

for k in ['script_freq', 'base_freq', 'log10_ratio']:
    trend_df['rank_' + k] = (
        trend_df
        .groupby('category')
        [k].rank(method='dense', ascending='base' in k)
    )

Show code cell source Hide code cell source

usage_order = ['Word rareness','Relative usage']
coarse_cat_cmap = {
    'show-specific': '#b2182b',
    'non show-specific': '#969696',
}

Show code cell source Hide code cell source

agg_show_df = (
    trend_df.query('date >= @show_start_date')
    .groupby(['word', 'category', 'base_freq', 'log10_ratio'])
    ['z_value'].agg('median')
    .reset_index()
    .rename(columns={'log10_ratio': 'Relative usage'})
)

agg_show_df['Word rareness'] = -np.log10(agg_show_df.pop('base_freq'))

agg_show_df['category'] = agg_show_df['category'].apply(
    lambda x: 'non show-specific' if 'show' not in x else x
)

agg_show_df = agg_show_df.melt(
    id_vars=['word', 'category', 'z_value'],
    var_name='word_metric',
)

agg_show_df

	word	category	z_value	word_metric	value
0	abe	non show-specific	0.900569	Relative usage	2.077172
1	able	non show-specific	-1.673570	Relative usage	0.091465
2	achieve	non show-specific	-0.537890	Relative usage	0.756252
3	addam	show-specific	4.245661	Relative usage	4.672333
4	advance	non show-specific	-0.096027	Relative usage	1.037198
...	...	...	...	...	...
497	winter	show-specific	-0.674498	Word rareness	4.110138
498	woman	show-specific	0.648381	Word rareness	3.649752
499	woodpile	non show-specific	0.623807	Word rareness	7.149967
500	worker	show-specific	-0.210060	Word rareness	4.570248
501	wylde	show-specific	0.267418	Word rareness	6.698970

502 rows × 5 columns

Visualize individual trends

Show code cell source Hide code cell source

for hue_col, cmap in zip(
    ['base_freq_quartile','log10_ratio_quartile'],
    ['Greys_r', 'Greys']
):
    rank_vec = trend_df['rank_' + hue_col.replace('_quartile', '')]

    trend_df['shifted_z_value'] = (
        trend_df['z_value'] * 0.8
        - rank_vec
    )

    g = sns.relplot(
        trend_df,
        x='date',
        # y='z_value',
        y='shifted_z_value',
        hue=hue_col,
        palette=cmap,
        units='word',estimator=None,
        row_order=cat_cmap.keys(),
        row='category',
        kind='line',
        n_boot=10,
        zorder=2,
        height=3,
        aspect=2,
        alpha=0.8,
    )

    [
        g.refline(x=x, color='k', ls=':', lw=0.5, zorder=1)
        for x in word_df['air_date'].drop_duplicates()
    ]
    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%b'))

    g.set_titles('')
    g.set_xlabels('')
    g.set_ylabels('')

    plt.xlim([viz_start_date,viz_stop_date])

    for i, (k, ax) in enumerate(g.axes_dict.items()):
        hide_xaxis = i < (len(g.axes) - 1)
        sns.despine(
            trim=True, offset=5,
            left=True,
            bottom = hide_xaxis,
            ax=ax
        )
        ax.label_outer(True)
        ax.set_yticks([])
        ax.text(
            x=viz_start_date + pd.Timedelta('5d'),
            y=20,
            s=k + ' words',
            fontstyle='italic',
            fontsize=18
        )

    g.legend.get_title().set_fontsize(15)
    g.legend.get_title().set_text(hue_col.replace('_', ' ').title())
    [l.set_linewidth(10) for l in g.legend.get_lines()]
    [t.set_fontsize(15) for t in g.legend.texts]

    g.tight_layout(h_pad=-2)

    plt.savefig(f'figures/hotds2-stacked-word-trends-colored-by-{hue_col}.png')
    plt.savefig(f'figures/hotds2-stacked-word-trends-colored-by-{hue_col}.svg')

Visualize bulk trends

Show code cell source Hide code cell source

plt.figure(figsize=(10,8))

for i, est_fn in enumerate([
    np.nanmedian, np.nanmean
]):

    plt.subplot(2,1,i+1)
    sns.lineplot(
        trend_df,
        x='date',
        y='z_value',
        hue='category',
        palette=cat_cmap,
        errorbar=('ci', 95),
        estimator=est_fn,
        marker='o',
        markersize=10,
        markeredgecolor='none',
        n_boot=50,
        zorder=2,
        lw=2,
        legend=False,
        err_kws={'alpha':0.1}
    )

    [
        plt.axvline(x=x, color='k', ls=':', lw=0.5, zorder=1)
        for x in word_df['air_date'].drop_duplicates()
    ]

    plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%b %d'))
    plt.xlim([viz_start_date,viz_stop_date])

    plt.xlabel(None)
    ylim_vec = plt.gca().get_ylim()


    if i == 0:
        plt.title('Trends of words used in Season 2')
        plt.xticks([])
    else:
        [
            plt.text(
                x=viz_start_date + pd.Timedelta('30d'),
                y=max(ylim_vec) - 0.85*j - 2,
                s=cat + ' words',
                c=col,
                fontsize=18,
                fontstyle='italic'
            ) for j, (cat, col) in enumerate(cat_cmap.items())
        ]


    plt.ylabel(f'{est_fn.__name__.replace("nan","")} of z-scored trends')
    sns.despine(trim=True, offset=5, ax=plt.gca(), bottom=i==0)

plt.tight_layout()

plt.savefig('figures/hotds2-bulk-agg-word-trends.png')
plt.savefig('figures/hotds2-bulk-agg-word-trends.svg')

plt.show()

Visualize aggregate after show

Show code cell source Hide code cell source

g = sns.lmplot(
    agg_show_df,
    x='value',
    y='z_value',
    hue='category',
    col='word_metric',
    col_order=usage_order,
    palette=coarse_cat_cmap,
    hue_order=coarse_cat_cmap.keys(),
    markers='.',
    scatter_kws={'s': 30, 'alpha': 0.6},
    aspect=0.8,
    height=5,
    legend=False,
    facet_kws={'sharex':False},
)

plt.ylim([-3, 8])

g.set_titles('')
g.set_ylabels('median z-scored trends')

[
    g.axes[0,0].text(
        x=3, y=8-i, s=cat + ' words', c=col,
        fontsize=18, fontstyle='italic', va='top'
    ) for i, (cat, col) in enumerate(coarse_cat_cmap.items())
]

[
    ax.set_xlabel(k) for k, ax in g.axes_dict.items()
]

g.fig.suptitle(
    'Relationship between word usage & searches after show air',
    fontsize=18, y=1, x=0.52,
)
sns.despine(trim=True, offset=5)
g.tight_layout(w_pad=1)


plt.savefig('figures/hotds2-after-air-trends-vs-usage.png')
plt.savefig('figures/hotds2-after-air-trends-vs-usage.svg')

plt.show()
