“Parks and Recreations” selected food words

This notebook visualizes selected food words from the TV show “Parks and Recreations”.

Source code: https://codeberg.org/penguinsfly/tv-mania/src/branch/main/pandr

Motivation

Why? Cuz the calzones …

Well, some foods are unusually used more than normal in the show, calzones being of them (from Ben), and of course waffles from Leslie.

This manually selects the following words to count from the show transcripts:

• calzone

• pancake

• waffle

• pizza

• steak

• beef

• burger

• pie

You could already guess that calzone & pizza were chosen because of Ben, pancake & waffle cuz of Leslie and steak & beef cuz of Ron

Obtain data

The data file parks-and-recreation_scripts.csv was obtained using sf2 that downloaded the scripts from Springfield! Springfield!.

sf2 --show "parks-and-recreation" --format csv

Import modules

Show code cell source Hide code cell source

import re

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
from matplotlib import rcParams
import seaborn as sns

from wordfreq import word_frequency
from statsmodels.stats.proportion import proportions_ztest

Show code cell source Hide code cell source

# plot configs
rcParams['font.family'] = 'Overpass Nerd Font'
rcParams['font.size'] = 18
rcParams['axes.titlesize'] = 20
rcParams['axes.labelsize'] = 18
rcParams['axes.linewidth'] = 1.5
rcParams['lines.linewidth'] = 1.5
rcParams['lines.markersize'] = 20
rcParams['patch.linewidth'] = 1.5
rcParams['xtick.labelsize'] = 18
rcParams['ytick.labelsize'] = 18
rcParams['xtick.major.width'] = 2
rcParams['xtick.minor.width'] = 2
rcParams['ytick.major.width'] = 2
rcParams['ytick.minor.width'] = 2
rcParams['savefig.dpi'] = 300
rcParams['savefig.transparent'] = False
rcParams['savefig.facecolor'] = 'white'
rcParams['savefig.format'] = 'svg'
rcParams['savefig.pad_inches'] = 0.5
rcParams['savefig.bbox'] = 'tight'

Load scripts & count words

data_path = 'parks-and-recreation_scripts.csv'

words = [
    'calzone', 'pancake', 'waffle', 'pizza',
    'steak', 'beef', 'burger', 'pie',
]

Count words from data

Show code cell source Hide code cell source

def count_words(df, words):
    script = re.sub('[^A-Za-z0-9]+', ' ', df['script']).lower()
    df['total_count'] = len(script.split())
    script = script.split('\n')
    num_lines = len(script)
    df['norm_lino'] = np.arange(num_lines)/num_lines

    for w in words:
        out_w = np.full(num_lines, fill_value=0)
        for lino, line in enumerate(script):
            out_w[lino] = len([x for x in line.split() if x==w or x==w+'s'])
        df[w + '_series'] = out_w
        df[w + '_count'] = sum(out_w)

    return df

script_df = pd.read_csv(data_path, index_col=None)
script_df = script_df.apply(lambda df: count_words(df, words), axis=1)

script_df

	id_text	show	season	episode	episode_title	script	url	total_count	norm_lino	calzone_series	...	pizza_series	pizza_count	steak_series	steak_count	beef_series	beef_count	burger_series	burger_count	pie_series	pie_count
0	Parks and Recreation s01e01 Episode Script	Parks and Recreation	1	1	CHE01 - Pilot	Hello.\nHi.\nMy name is Leslie Knope, and I wo...	https://www.springfieldspringfield.co.uk/view_...	3250	[0.0]	[0]	...	[0]	0	[0]	0	[0]	0	[0]	0	[0]	0
1	Parks and Recreation s01e02 Episode Script	Parks and Recreation	1	2	CHE03 - Canvassing	LESLIE Well, one of the funner things that we ...	https://www.springfieldspringfield.co.uk/view_...	3561	[0.0]	[0]	...	[0]	0	[0]	0	[0]	0	[0]	0	[0]	0
2	Parks and Recreation s01e03 Episode Script	Parks and Recreation	1	3	102 - The Reporter	Okay, now, see, here's a good example of a pla...	https://www.springfieldspringfield.co.uk/view_...	3380	[0.0]	[0]	...	[0]	0	[0]	0	[0]	0	[0]	0	[0]	0
3	Parks and Recreation s01e04 Episode Script	Parks and Recreation	1	4	CHE04 - Boys' Club	TOM So, we've been called out to this hiking t...	https://www.springfieldspringfield.co.uk/view_...	3337	[0.0]	[0]	...	[0]	0	[0]	0	[0]	0	[0]	0	[0]	0
4	Parks and Recreation s01e05 Episode Script	Parks and Recreation	1	5	CHE05 - The Banquet	In a town as old as Pawnee, there's a lot of h...	https://www.springfieldspringfield.co.uk/view_...	3530	[0.0]	[0]	...	[0]	0	[0]	0	[0]	0	[0]	0	[1]	1
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
117	Parks and Recreation s07e08 Episode Script	Parks and Recreation	7	8	Ms. Ludgate-Dwyer Goes to Washington	Okay.\nSo, the central question that these sen...	https://www.springfieldspringfield.co.uk/view_...	3915	[0.0]	[0]	...	[0]	0	[0]	0	[0]	0	[0]	0	[0]	0
118	Parks and Recreation s07e09 Episode Script	Parks and Recreation	7	9	Pie-Mary	We need to go over the schedule leading up to ...	https://www.springfieldspringfield.co.uk/view_...	3700	[0.0]	[4]	...	[0]	0	[0]	0	[0]	0	[0]	0	[24]	24
119	Parks and Recreation s07e10 Episode Script	Parks and Recreation	7	10	The Johnny Karate Super Awesome Musical Explos...	It's the Johnny Karate Super Awesome Musical E...	https://www.springfieldspringfield.co.uk/view_...	3121	[0.0]	[0]	...	[1]	1	[0]	0	[0]	0	[0]	0	[0]	0
120	Parks and Recreation s07e11 Episode Script	Parks and Recreation	7	11	Two Funerals	Hey.\nHey, guys.\nListen.\nUh, Leslie's gonna ...	https://www.springfieldspringfield.co.uk/view_...	3531	[0.0]	[0]	...	[2]	2	[0]	0	[0]	0	[0]	0	[0]	0
121	Parks and Recreation s07e12 Episode Script	Parks and Recreation	7	12	One Last Ride, Part 1 & 2	Which brings us to 2005.\nThe Circle Park reno...	https://www.springfieldspringfield.co.uk/view_...	6789	[0.0]	[1]	...	[1]	1	[2]	2	[1]	1	[0]	0	[0]	0

122 rows × 25 columns

Compare data frequency to rspeer/wordfreq

This attemps to establish how uncommon these selected words are

The base frequencies are from using rspeer/wordfreq.

Higher ratios between script_freq and base_freq means such words are unusually higher than expected.

No additional comparisons or corrections are done, so take these numbers with a grain of salt.

Show code cell source Hide code cell source

script_word_count = script_df.filter(regex='.*count').rename(columns=lambda c: c.replace('_count', '')).sum(axis=0)
total_word_count = script_word_count.pop('total')
script_word_freq = script_word_count / total_word_count

word_freq_df = pd.DataFrame({
    'script_freq': script_word_freq,
    'base_freq': {w: word_frequency(w, 'en') for w in words},
    'script_count': script_word_count,
})

word_freq_df['ratio'] = word_freq_df['script_freq'] / word_freq_df['base_freq']
word_freq_df['log_ratio'] = np.log10(word_freq_df['ratio'])

word_freq_df = word_freq_df.join(pd.json_normalize(word_freq_df.apply(
    lambda x: dict(zip(
        ('z_stat','p_val'),
        proportions_ztest(x['script_count'], total_word_count, x['base_freq'], alternative='larger')
    )),
    axis=1
)).set_index(word_freq_df.index))

word_freq_df = word_freq_df.reset_index().rename(columns={'index': 'word'})
word_freq_df = word_freq_df.sort_values(by=['ratio'], ascending=[False]).reset_index(drop=True)

word_freq_df

	word	script_freq	base_freq	script_count	ratio	log_ratio	z_stat	p_val
0	calzone	0.000058	1.580000e-07	26	368.541199	2.566486	5.085332	1.834919e-07
1	waffle	0.000123	2.000000e-06	55	61.588904	1.789502	7.296233	1.479677e-13
2	pancake	0.000029	2.240000e-06	13	12.997658	1.113865	3.328200	4.370460e-04
3	burger	0.000096	1.170000e-05	43	8.230996	0.915452	5.761040	4.179868e-09
4	steak	0.000054	9.330000e-06	24	5.761020	0.760499	4.048722	2.574908e-05
5	pizza	0.000150	2.690000e-05	67	5.578177	0.746492	6.718468	9.182227e-12
6	pie	0.000076	1.550000e-05	34	4.912663	0.691317	4.644206	1.706934e-06
7	beef	0.000025	1.950000e-05	11	1.263362	0.101528	0.691396	2.446582e-01

Visualize results

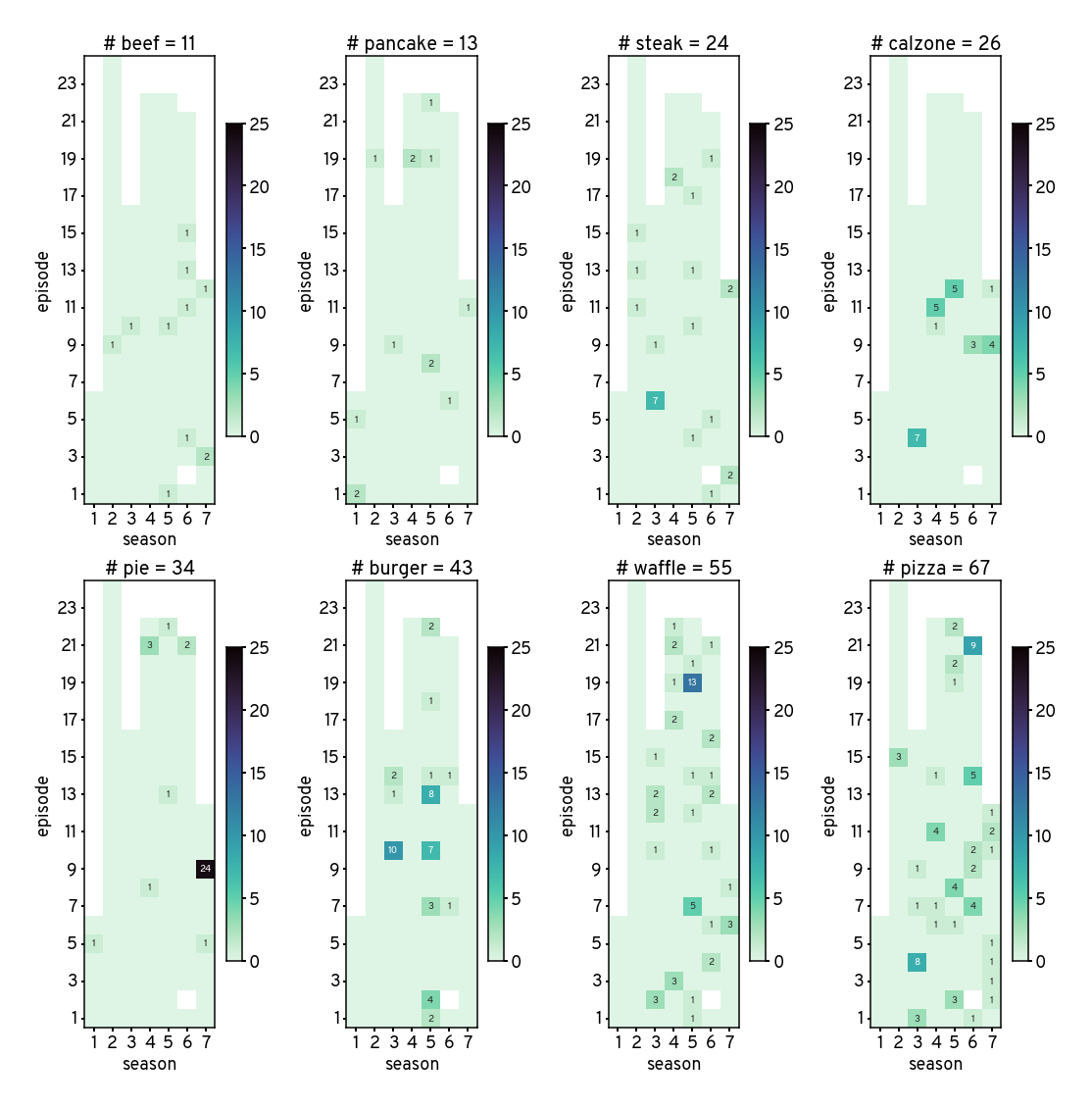

Counts of words throughout the show

Show code cell source Hide code cell source

plt.figure(figsize=(15,15))

num_words = len(words)
sel_words = word_freq_df.sort_values('script_count').word.to_list()

for i, w in enumerate(sel_words):
    w_df = script_df.pivot(
        index='episode',
        columns='season',
        values=w + '_count'
    )
    w_total = np.nansum(w_df.to_numpy())
    plt.subplot(2,4,i+1)

    sns.heatmap(
        w_df,
        square=True,
        cmap='mako_r',
        vmin = 0,
        vmax = 25,
        fmt = 's',
        annot = w_df.fillna(0).astype(int).replace(0, '').astype(str),
        cbar_kws={'shrink':0.7}
    )
    plt.title(f'# {w} = {int(w_total)}')
    plt.gca().invert_yaxis()
    plt.yticks(rotation=0)

sns.despine(right=False, top=False)

plt.tight_layout()

# plt.savefig('figures/word_cnt_mat.svg')

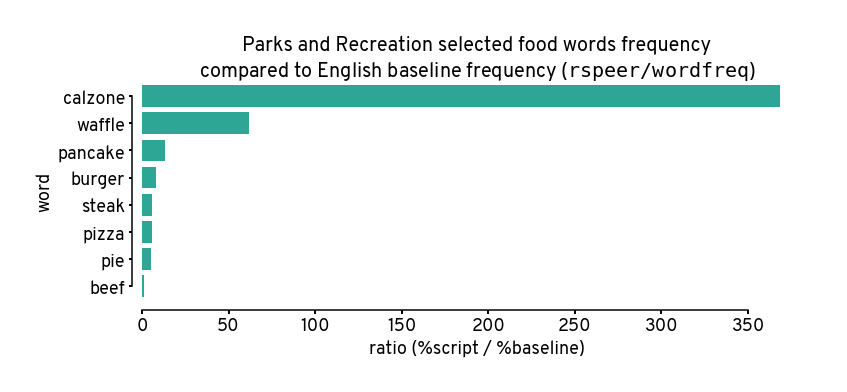

How are these words?

Remember higher means more unusually high, e.g. calzone was used about 350 times more frequently than expected.

Anyone who has watched the show can atest to this lol.

Show code cell source Hide code cell source

plt.figure(figsize=(12,4))
sns.barplot(
    data=word_freq_df,
    y='word',
    x='ratio',
    color=(0,0.7,0.61),
    alpha=0.9,
    errorbar=None,
)
plt.xlabel('ratio (%script / %baseline)')
plt.title('Parks and Recreation selected food words frequency\n'\
          'compared to English baseline frequency ($\mathtt{rspeer/wordfreq}$)')
sns.despine(trim=True, ax=plt.gca(), offset=10)

# plt.savefig('figures/compared_to_baseline.svg')

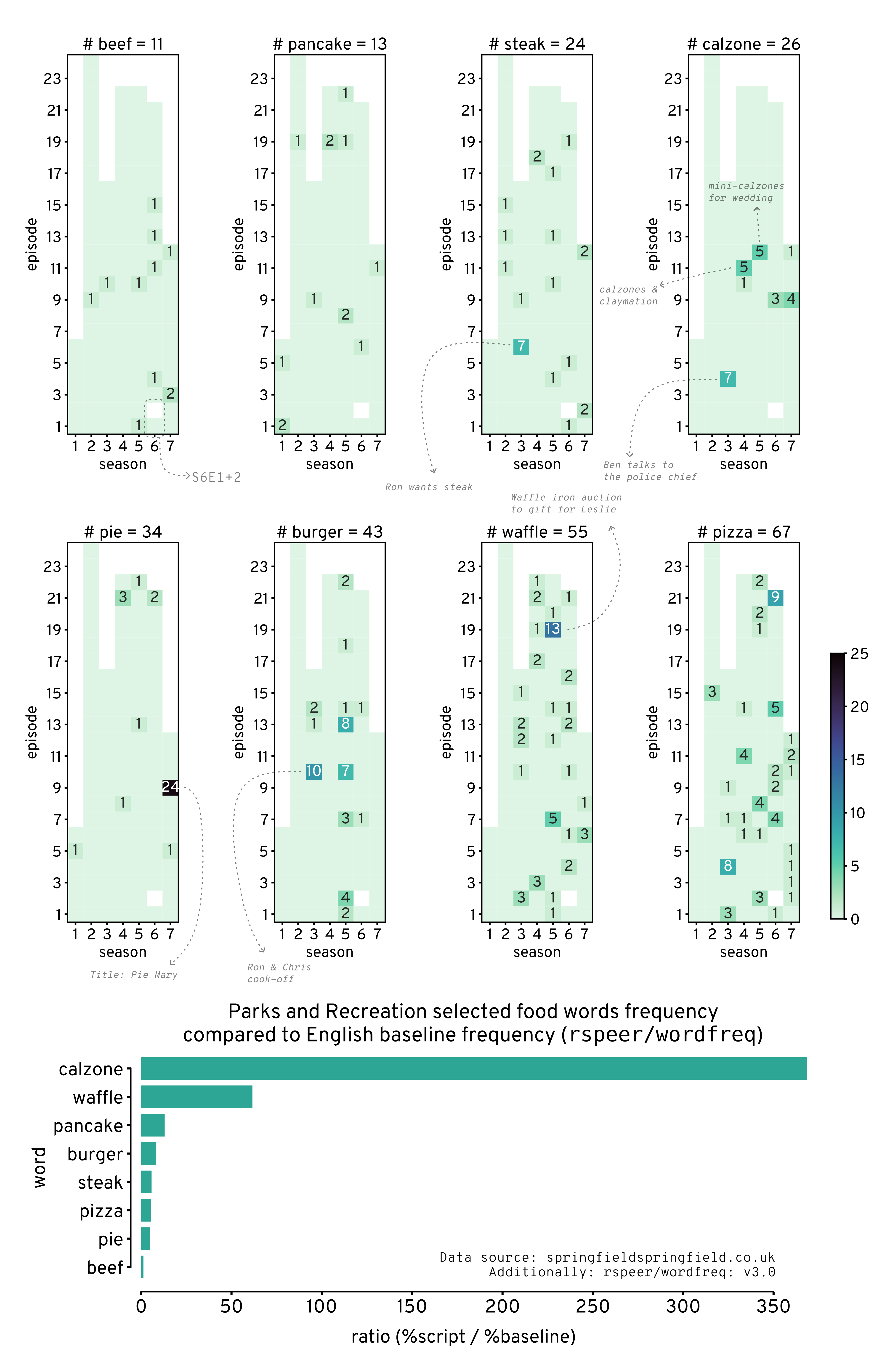

Putting it all together w/ annotations

I put those 2 figures together in Inkscape with some annotations for the final presentatiton

from IPython.display import Image, display
display(Image(filename='figures/pandr-foods.png'))
